Playback Screens & Menus

Please excuse the poor quality of these screen captures. The Fujifilm X70 kit does not include an AV output cable, therefore we had to photograph the display screen.

Playback - main GIF.gif

When viewing the photos stored on the Fujifilm X70's memory card, you'll press the Playback button in the middle of the upper portion of the back panel of the camera. You can change the data displayed on the screen for each stored photo by pressing the Disp/Back button on the screen. The display options are:

  • No data
  • Limited data, including shutter speed, aperture, EV, ISO, dynamic range, image size, image quality, and battery power
  • Extensive data, with file name, a histogram, date and time, pixel size, shutter speed aperture, ISO, EV, shooting mode, image quality, dynamic range, white balance, film simulation, highlight tone, shadow tone, color, sharpness, noise reduction, flash, EV, and AE
  • Favorite star ranking with only data being date and time shot and file name

Playback - thumbnail GIF.gif
You can view a thumbnail grid of your stored photos. With a single image displayed on the X70's screen, press the command dial on the back of the camera to the left. You'll see a 3x3 grid of thumbnail images followed by a 10x10 thumbnail grid. Use the four-way button or the touch screen to highlight the image you want to access and press Menu/OK to bring the thumbnail image to the full screen.

Playback - zoom GIF.gif
With the Fujifilm X70, you also can magnify a single image on the screen. Press the command dial to the right. As the image is magnified on the screen, you'll see the full image in a white box in the lower right corner. The smaller box inside the full image box indicates the current view on the screen. Use the four-way button or touch screen to change the portion of the scene you can see. There are 20 levels of magnification available.

Playback - slideshow GIF.gif
Fujifilm included a slideshow feature with the X70, where the photos you have stored on the memory card can be randomly displayed on the screen. The options are: Normal, Fade-in, and Multiple.

Playback - movie GIF.gif

With a movie displayed on the X70's screen in Playback mode, press the downward four-way button to begin replaying the movie. A line graph along the top of the screen will indicate the amount of time expired in the movie's playback.

Playback - movie main GIF.gif

As with still images, you can change the data displayed on the screen about how each movie was created by pressing the Disp/Back button.

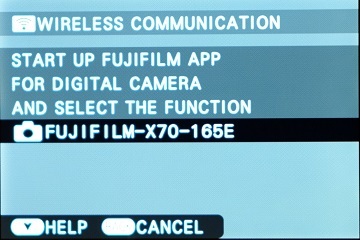

Fujifilm included Wi-Fi connectivity with the X70 camera. To start the process of connecting to a Wi-Fi network, press the Wi-Fi button on the back of the camera in Playback mode. After you've downloaded the Fujifilm Camera Remote app to your mobile device, You also can transfer data to your PC through the X70's Wi-Fi feature.

Playback - playback menu.jpg

When in Playback mode, you can access the Playback menu by pressing the Menu/OK button on the back of the camera. On the Playback menu screen you'll see the Playback command options using the green play icon tabs in the upper left corner of the screen. (The blue wrench icon tabs represent the Setup menu, which was discussed on the previous page of this review.)

Use the four-way buttons or touch screen to scroll among the tabs and the menu commands that appear in the middle of the screen. Some Playback menu options may be grayed out, depending on the type of image or movie you have displayed on the screen when you press the Menu/OK button. The Playback menu options are:

  • Wireless Communication
  • RAW Conversion - Reflect Shooting Cond., Push/Pull Processing, Dynamic Range, Film Simulation, White Balance, WB Shift, Color, Sharpness, Highlight Tone, Shadow Tone, Noise Reduction, Color Space
  • Erase - Back, Frame, Selected Frames, All Frames
  • Crop
  • Resize - M, S, 640
  • Protect - Frame, Set All, Reset All
  • Image Rotate
  • Red Eye Removal
  • Slide Show - Normal, Fade-In, Multiple
  • Photobook Assist
  • Image Search - By Date, By Face, By Favorites, By Scene, By Type of Data
  • PC Auto Save
  • Print Order (DPOF) - With Date, Without Date, Reset All
  • Instax Printer Print
  • Disp Aspect
