Record Screens & Menus

Please excuse the poor quality of these screen captures. The Fujifilm X100T kit does not include an AV output cable, therefore we had to photograph the LCD.

Record - main GIF.gif
To change the data displayed on the screen in the still image shooting mode, just press the Disp/Back button in the lower right corner of the back panel of the X100T.

In default view, video and still image resolution settings are displayed on the top of the screen. Macro, flash, and dynamic range settings are on the sides of the screen, while you'll see focus mode, shooting mode, shutter speed, aperture setting, EV setting, ISO setting, and battery level across the bottom of the screen.

Press Disp to remove all data from the screen. Press Disp again to see a grid that provides detailed information about the camera's settings, including focus point, movie resolution, still image resolution,histogram, EV setting, shooting mode, shutter speed, aperture setting, ISO setting, dynamic range, white balance, film simulation, highlight tone, shadow tone, flash setting, flash exposure setting, and macro setting. You can change the information displayed on the screen by using the on-screen menu.

Record - Q GIF.gif
The Q button on the back of the camera is the easiest way to make changes to the camera's settings in a short amount of time. Use the four-way button to move up/down, right/left in the grid. With a single box in the grid highlighted, use the command dial on the back of the camera to make changes to the highlighted setting. The settings under the Q button are:

  • Select Custom Setting - Base, C1, C2, C3, C4, C5, C6, C7
  • ISO - Auto 800, Auto 1600, Auto 3200, L100, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, H12800, H25600, H51200
  • Dynamic Range - DR100, DR200, DR400, DR Auto
  • White Balance - Auto, Custom, Color Temperature, Sunlight, Shade, Daylight Fluorescent (1), Warm White Fluorescent (2), Cool White Fluorescent (3), Incandescent Light, Underwater
  • Noise Reduction - +2, +1, 0, -1, -2
  • Image Size - L (16:9, 3:2, 1:1), M (16:9, 3:2, 1:1), S (16:9, 3:2, 1:1)
  • Image Quality - Fine, Normal, RAW + Fine, RAW + Normal, RAW
  • Film Simulation - Standard/Provia, Vivid/Velvia, Soft Color/Astia, Classic Chrome, Pro Neg. Hi, Pro Neg. Standard, Monochrome, Monochrome + Ye Filter, Monochrome + R Filter, Monochrome + G Filter, Sepia
  • Highlight Tone - +2, +1, 0, -1, -2
  • Shadow Tone - +2, +1, 0, -1, -2
  • Color - +2, +1, 0, -1, -2
  • Sharpness - +2, +1, 0, -1, -2
  • Self-Timer - Off, 2 seconds, 10 seconds
  • AF Mode - Area, Multi
  • Flash Mode - Auto, Forced Flash, Slow Synchro, Commander, External Flash, Suppressed Flash
  • LCD Brightness - +5, +4, +3, +2, +1, 0, -1, -2, -3, -4, -5
Some of the options available under the Q button may change, depending on the shooting mode you've selected.

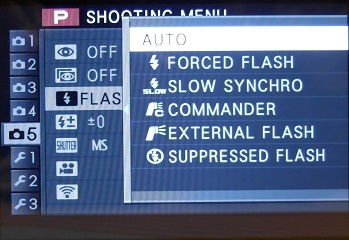

Many of the changes you can make to the camera's settings through the Q button can also be made through the camera's on-screen menus, such as through the flash menu pictured here. It's faster to make use of the Q button in many cases though.

Record - white balance GIF.gif
You also can make changes to certain settings through the function buttons, which are customizable. The right side of the four-way button is defaulted to the white balance setting, which includes:

  • Auto
  • Custom
  • Color Temperature
  • Sunlight
  • Shade
  • Daylight Fluorescent (1)
  • Warm White Fluorescent (2)
  • Cool White Fluorescent (3)
  • Incandescent Light
  • Underwater

Record - adv filter GIF.gif
The upper four-way button is defaulted to the Advanced Filter menu, which provides special effects and where the options are:

  • Off
  • Partial Color - Purple, Blue, Green, Yellow, Orange, Red
  • Soft Focus
  • Dynamic Tone
  • Low Key
  • High Key
  • Pop Color
  • Miniature
  • Toy Camera

Record - film sim GIF.gif
The left side of the four-way button defaults to open the Film Simulation menu, which includes additional special effects, such as:

  • Standard/Provia
  • Vivid/Velvia
  • Classic Chrome
  • Soft Color/Astia
  • Pro Neg. Hi
  • Pro Neg. Standard
  • Monochrome
  • Monochrome + Ye Filter
  • Monochrome + R Filter
  • Monochrome + G Filter
  • Sepia

Record - movie GIF.jpg
When shooting a movie you'll see a red flashing dot along the upper portion of the screen indicating the movie is being recorded. Along the bottom of the screen, you'll see a movie mode icon, as well as an EV grid and a battery charge indicator.

Record - function GIF.gif
As mentioned previously you can use the X100T's on-screen menu to adjust the camera control settings associated with each of the camera's seven possible function buttons. The graphical image associated with the process of changing the settings makes this process very easy to understand and gives this model some nice flexibility.

Record - shooting menu.jpg
The shooting menu for this camera is available by pressing the Menu/OK button the back of the camera in any shooting mode. Five pages of menu options are available, as indicated by the red camera icon tabs numbered one through five on the left side of the screen. Use the four-way button to navigate among the tabs or the menu commands that appear in the middle of the screen. If you find the tabs confusing, you can just scroll down through the menu commands and you'll advance to the next page of commands when you reach the bottom of the current page.

The menu options are:

  • Autofocus Setting - Focus Area, Macro (On, Off), Release/Focus Priority (AF-S Priority Selection Release (Release, Focus), AF-C Priority Selection Release (Release, Focus)), Instant AF Setting (AF-S, AF-C), AF Mode (Multi, Area), Face Detection (On, Off), Pre-AF (On, Off), AF Illuminator (On, Off), Corrected AF Frame (On, Off)
  • ISO - L100, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, H12800, H25600, H51200, Auto 1, Auto 2, Auto 3 (all Auto settings offer the same options, which are: Default Sensitivity (200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400), Max Sensitivity (400, 800, 1600, 3200, 6400), Min Shutter Speed (1/4, 1/8, 1/15, 1/30, 1/40, 1/60, 1/80, 1/100, 1/125))
  • Image Size - L (16:9, 3:2, 1:1), M (16:9, 3:2, 1:1), S (16:9, 3:2, 1:1)
  • Image Quality - Fine, Normal, RAW + Fine, RAW + Normal, RAW
  • Dynamic Range - Auto, 100%, 200%, 400%
  • Film Simulation - Standard/Provia, Vivid/Velvia, Soft Color/Astia, Classic Chrome, Pro Neg. Hi, Pro Neg. Standard, Monochrome, Monochrome + Ye Filter, Monochrome + R Filter, Monochrome + G Filter, Sepia
  • Film Simulation Bkt - Film 1, Film 2, Film 3
  • ND Filter - Yes, No
  • Color - +2, +1, 0, -1, -2
  • Sharpness - +2, +1, 0, -1, -2
  • Highlight Tone - +2, +1, 0, -1, -2
  • Shadow Tone - +2, +1, 0, -1, -2
  • Noise Reduction - +2, +1, 0, -1, -2
  • Long Exposure NR - Yes, No
  • White Balance - Auto, Custom, Color Temperature, Sunlight, Shade, Daylight Fluorescent (1), Warm White Fluorescent (2), Cool White Fluorescent (3), Incandescent Light, Underwater
  • Select Custom Setting - Custom 1, Custom 2, Custom 3, Custom 4, Custom 5, Custom 6, Custom 7
  • Edit/Save Custom Setting - Custom 1, Custom 2, Custom 3, Custom 4, Custom 5, Custom 6, Custom 7 (all Custom settings have the same options, which are: Save Current Settings, ISO, Dynamic Range, Film Simulation, White Balance, Color, Sharpness, Highlight Tone, Shadow Tone, Noise Reduction, Reset)
  • Function (Fn) Setting - Fn 1, Fn 2, Fn 3, Fn 4, Fn 5, Fn 6, Fn 7 (all Function settings have the same options, which are: Advanced Filter, Multiple Exposure, Macro, Preview Depth of Field, ISO, Self-Timer, Image Size, Image Quality, Dynamic Range, Film Simulation, White Balance, ND Filter, Photometry, AF Mode, Focus Area, Corrected AF Frame, Flash Mode, Flash Compensation, Select Custom Setting, Movie, Face Detection, Preview Pic. Effect, High Performance, RAW, Wireless Communication, Conversion Lens, Shutter Type, None)
  • Disp. Custom Setting - OVF (Framing Guideline, Electronic Level, AF Distance Indicator, MF Distance Indicator, Histogram, Aperture/S-Speed/ISO, Exp. Compensation, Photometry, Flash, White Balance, Film Simulation, Dynamic Range, Frames Remaining, Image Size/Quality, Movie Mode & Rec. Time, Battery Level), EVF/LCD (same as OVF)
  • Conversion Lens - Wide, Tele, Off
  • MF Assist - Standard, Digital Split Image, Focus Peak Highlight (White/Low, White/High, Red/Low, Red/High, Blue/Low, Blue/High)
  • Advanced Filter - Off, Partial Color (Purple, Blue, Green, Yellow, Orange, Red), Soft Focus, Dynamic Tone, Low-Key, High-Key, Pop Color, Miniature, Toy Camera
  • Interval Timer Shooting - Interval (between 1 second and 24 hours), Number of Times (between 1 and 999)
  • Self-Timer - Off, 2 sec, 10 sec
  • AE/AF Lock Mode - AE & AF On When Pressing, AE & AF On/Off Switch
  • AE/AF Lock Button - AE Lock Only, AF Lock Only, AE/AF Lock
  • Photometry - Multi, Spot, Average
  • Interlock Spot AE & Focus Area - On, Off
  • Red Eye Removal - On, Off
  • Save Org. Image - On, Off
  • Flash Mode - Auto, Forced Flash, Slow Synchro, Commander, External Flash, Suppressed Flash
  • Flash Compensation - +2, +1 2/3, +1 1/3, +1, +2/3, +1/3, 0, -1/3, -2/3, -1, -1 1/3, -1 2/3, -2
  • Shutter Type - Mechanical Shutter, Electronic Shutter, Mechanical + Electronic
  • Movie Set-Up - Movie Mode (1920x1080 (60 fps, 50 fps, 30 fps, 25 fps, 24 fps), 1280x720 (60 fps, 50 fps, 30 fps, 25 fps, 24 fps)), Movie ISO (Auto, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400), Mic Level Adjustment (1, 2, 3, 4), Mic/Remote Release (Mic, Remote)
  • Wireless Communication

Record - setup menu.jpg
The options for the Setup menu are marked with blue wrench icon tabs along the left side of the screen. Three pages of Setup menu options are available.

  • Date/Time - MM/DD/YY, YY.MM.DD, DD.MM.YY
  • Time Difference - Home, Local
  • Language
  • Reset - Shooting Menu Reset, Setup Reset
  • Silent Mode - On, Off
  • Frame No. - Continuous, Renew
  • Focus Ring - Clockwise, Counter-Clockwise
  • Focus Check - On, Off
  • Sound Setup - Operation Volume (Off, 1, 2, 3), Shutter Volume (Off, 1, 2, 3), Shutter Sound (1, 2, 3), Playback Volume (between 0 and 10)
  • Screen Setup - Image Disp. (Off, 0.5 sec, 1.5 sec, Continuous), EVF Autorotate Displays (On, Off), Preview Exp. in Manual Mode (On, Off), Monitor Sunlight Mode (On, Off), EVF Brightness (Auto, Manual), EVF Color, LCD Brightness (+5, +4, +3, +2, +1, 0, -1, -2, -3, -4, -5), LCD Color (+5, +4, +3, +2, +1, 0, -1, -2, -3, -4, -5), Preview Pic. Effect (On, Off), Framing Guideline (Grid 9, Grid 24, HD Framing), Autorotate PB (On, Off), Focus Scale Units (Meters, Feet)
  • Selector Button Setting - Fn Button, Focus Area
  • Edit/Save Quick Menu - Select Custom Setting, ISO, Dynamic Range, White Balance, Noise Reduction, Image Size, Image Quality, Film Simulation, Highlight Tone, Shadow Tone, Color, Sharpness, Self-Timer, AF Mode, Flash Mode, EVF/LCD Brightness
  • Power Management - Auto Power Off (Off, 2 min, 5 min), OVF Power Save Mode (On, Off), High Performance (On, Off)
  • Shutter Count
  • Edit File Name - sRGB, Adobe RGB
  • Wireless Settings - General Settings (Name, Reset Wireless Settings), Resize Image for Smartphone to 3M (On, Off), PC Auto Save Settings (Delete Registered Destination PC, Details of Previous Connection)
  • PC Auto Save Setting - Simple Setup, Manual Setup
  • Geotagging Setup - Geotagging (On, Off), Location Info (On, Off)
  • Instax Printer Connection Setting
  • Color Space - sRGB, Adobe RGB
  • Format
