Record Screens & Menus

The X-T2 does not feature a standard mode dial like we are used to seeing on most digicams. Dials for the aperture, shutter and ISO leaves the camera in some type of manual control mode at all times. There is the option to set them all to automatic, creating a program mode, but the camera does not have a photo-assisting Automatic shooting mode. Along with the drive mode ring, you will find the creative shooting modes and panorama modes for those special shooting occasions.

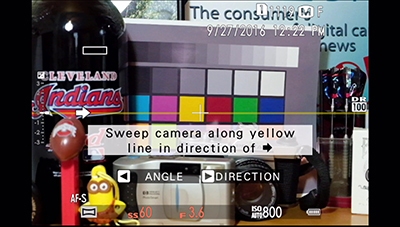

Panoramic shooting is incredibly easy if you allow the camera to do all the work. Using the Panorama mode, the camera allows you to press the shutter and sweep the camera in the direction shown on the LCD screen. The camera then shoots a series of images while the camera sweeps and stitches them together for you, providing you with the final image.





The creative shooting modes are preset to give some popular effects without the need for editing later. These settings and the panorama mode above are the closest you will get to a full automatic shooting mode with the X-T2.





On the back of the camera is a "focus joystick" that is dedicated to changing the AF point of the camera. This allows for faster changes while shooting, without having any other buttons or menus to find first.





Quick Menu:
  • Select Custom Setting - Base, C1, C2, C3, C4, C5, C6, C7
  • AF Mode - Single Point, Zone, Wide/Tracking
  • Dynamic Range - 100, 200, 400, Auto
  • White Balance - Auto, Custom 1-3, Color Temperature, Fine/Sunlight, Shade, Fluorescent Light 1, Fluorescent Light 2, Fluorescent Light 3, Incandescent, Underwater
  • Noise Reduction - +4, +3, +2, +1, 0, -1, -2, -3, -4
  • Image Size - L 3:2, L 16:9, L 1:1, M 3:2, M 16:9, M 1:1, S 3:2, S 16:9, S 1:1
  • Image Quality - RAW F, RAW N, RAW, Fine, Normal
  • Film Simulation - Standard, Vivid, Soft, Pro Negative High, Pro Negative Standard, Monochrome, Monochrome + Ye filter, Monochrome + R filter, Monochrome + G filter, Sepia
  • Highlight Tone - +4, +3, +2, +1, 0, -1, -2
  • Shadow Tone - +4, +3, +2, +1, 0, -1, -2
  • Color - +4, +3, +2, +1, 0, -1, -2, -3, -4
  • Sharpness - +4, +3, +2, +1, 0, -1, -2, -3, -4
  • Self-Timer - Off, 10 sec, 2 sec
  • Face Detection - Face, Auto Eye, Left Eye, Right Eye, Off
  • Flash Mode - Forced Flash, 2nd Curtain Sync, Commander, Suppressed Flash
  • LCD Brightness - between +5 and -5





Shooting Menu:
- Image Quality Setting
  • Image Size - L 3:2, L 16:9, L 1:1, M 3:2, M 16:9, M 1:1, S 3:2, S 16:9, S 1:1
  • Image Quality - Fine, Normal, Fine + RAW, Normal + RAW, RAW
  • Raw Recording - Uncompressed, Lossless Compressed
  • Film Simulation - Standard, Vivid, Soft, Classic Chrome, Pro Neg. Hi, Pro Neg. Std, Arcos + G filter, (Monochrome, Monochrome + Ye filter, Monochrome + R filter, Monochrome + G filter), Sepia
  • Grain Effect - Strong, Weak, Off
  • Dynamic Range - Auto, 100%, 200%, 400%
  • White Balance - Auto, Custom 1-3, Color Temperature, Fine/Sunlight, Shade, Fluorescent Light 1, Fluorescent Light 2, Fluorescent Light 3, Incandescent, Underwater
  • Highlight Tone - +4 thourgh -2
  • Shadow Tone - +4 thourgh -2
  • Color - ±4
  • Sharpness - ±4
  • Noise Reduction - ±4
  • Long Exposure NR - On, Off
  • Lens Modulation Optimizer - On, Off
  • Color Space - sRGB, Adobe RGB
  • Pixel Mapping -
  • Select Custom Setting - Choose 1-7
  • Edit/Save Custom setting
- AF/MF Settings:
  • Focus Area - Manually set AF area and AF size
  • AF Mode - Single Point, Zone, Wide/Tracking
  • AF-C Custom Setting - Choose and adjust settings for Zone Area Switching, Speed Tracking and Tracking Sensitivity
  • AF Point Display - On or Off
  • Number of Focus Points - 91, 325
  • Pre-AF - On or Off
  • AF Illuminator - On or Off
  • Face/Eye Detection - Face, Auto Eye, Left Eye, Right Eye, Off
  • AF+MF - On or Off
  • MF Assist - Standard, Digital Split Image, Focus Peak Highlight
  • Focus Check - On or Off
  • Interlock Spot AE & Focus Area - On or Off
  • Instant AF Setting - AF-S, AF-C
  • Depth of Field Scale - Pixel Basis, Film Format Basis
  • Release/Focus Priority - AF-S (Release, Focus), AF-C (Release, Focus)
-Shooting Settings:
  • Drive Setting - BKT (adjust settings for all the cameras forms of BKT), Choose High Speed Burst rate (8fps, 11fps, 14fps), Choose Low Speed Burst Rate (3fps, 4fps, 5fps), ADV. Filter Settings (Choose advanced filter)
  • Self-Timer - Off, 2 sec, 10 sec.
  • Interval Timer Shooting - Set interval and number of shots
  • Shutter Type - Mechanical, Electronic, Mechanical+Electronic
  • IS Mode - Continuous, Shooting Only
  • ISO Auto setting - Set min. and max ISO with min. shutter speed for each of the 3 ISO auto settings
  • Mount Adapter Setting - Lens 1 21mm, Lens 2 24mm, Lens 3 28mm, Lens 4 35mm, Lens 5 50mm (adjustable), Lens 6 75mm (adjsutable)
  • Wireless Communication - Connect camera to a smartphone via the WiFi and Fujifilm Camera Remote App
-Flash Settings:
  • Flash Function Setting - Adjust standard flash settings
  • Red-Eye Removal - Flash+ Removal, Flash, Removal, Off
  • TTL-Lock Mode - Lock with Last Flash, Lock with Metering Mode
  • LED Light Setting - Catchlight, AF Assist, AF Assist + Catchlight, Off
  • Master Setting - Gr A, Gr B, Gr C, Off
  • CH Setting - Select Channel 1-4





The X-T2 sports some fantastic video capabilities, allowing you to record Full 1080p at 60fps and 4K video at 30fps, with several other options as well. Via HMDI, the camera will export live video to a monitor as well as showing it on the LCD screen, which is why our screen does not show any shooting information (but can be turned on). The camera must be put into video recording mode, unlike most cameras, it does not have a dedicated video recording button. This means that you have to plan ahead and be ready.





Movie Menu:
  • Movie Mode - 4K 29.97fps, 4K 25fps, 4K 24fps, 4K 23.98fps, Full HD 59.94fps, Full HD 50fps, Full HD 29.97fps, Full HD 25fps, Full HD 24fps, Full HD 23.98fps, 720p 59.94fps, 720p 50fps, 720p 29.97fps, 720p 25fps, 720p 24fps, 720p 23.98fps
  • Movie AF Mode - Multi, Area
  • HDMI Output Info Display - Off, On
  • 4K Movie Output - SD Card, HDMI, HDMI F-Log
  • HDMI Rec Control - On or Off
  • Mic Level Adjustment - Manually adjust the MIC volume
