Record Screens & Menus

Please excuse the poor quality of these screen captures. The Fujifilm X-A3 kit does not include an AV output cable, therefore we had to photograph the LCD for the record screens.

Record - program GIF.gif
The Fujifilm X-A3 allows you to change the data displayed on the LCD while you're shooting photos. Just press the Disp/Back button on the back of the camera.

In default view in Program Auto mode, video and still image resolution settings are displayed on the top of the screen. Shooting mode, EV, and ISO settings are along the bottom of the screen.

Press Disp to remove all data from the screen. Press Disp again to return to the original view with data on the screen.

You can see the Touch Shot icon in the upper right corner of the screen. This means you can record a photo by simply touching the screen. You can change this setting through the Shooting Menu to also cause a touch of the screen to set the autofocus point, the autofocus area, or to turn off the touch screen.

Record - mode dial GIF.gif
As you twist the mode dial on the top of the X-A3, you'll see a virtual mode dial appear on the right side of the screen, along with an explanation of the currently selected mode.

Record - SP AP GIF 2.gif
As you shoot in Shutter Priority or Aperture Priority modes, you'll see the shutter speed or aperture setting in the lower left corner of the display screen turn blue. This means you can change the setting by spinning the black command dial on the back of the camera. (It's partially hidden by the thumbpad.)

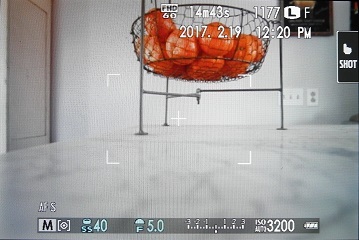

In Manual mode, both shutter speed and aperture are in blue. You'll use the black command dial to change the aperture and the silver command dial on the top panel of the camera to change the shutter speed.

Record - Q GIF.gif
As with many Fujifilm mirrorless cameras, the manufacturer included a Q button in the lower right corner of the back panel, which opens the Quick menu. It is a great way to change the settings quickly.

Use the four-way button to highlight different icons in the Q menu grid. Once the setting you want to change is highlighted, use either the black or silver command dials to scroll through the available settings. Press the Menu/OK button to lock in the change.

The Q button settings will change, depending on which shooting mode you're using. In Program mode the Q button settings are:

  • ISO - Auto 800, Auto 1600, Auto 3200, L100, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, H12800, H25600
  • Dynamic Range - DR100, DR200, DR400, DR Auto
  • White Balance - Auto, Custom, Color Temperature, Fine, Shade, Fluorescent-1, Fluorescent-2, Fluorescent-3, Incandescent Light, Underwater
  • Noise Reduction - +2, +1, 0, -1, -2
  • Image Size - L (16:9, 3:2, 1:1), M (16:9, 3:2, 1:1), S (16:9, 3:2, 1:1)
  • Image Quality - Fine, Normal, RAW + Fine, RAW + Normal, RAW
  • Film Simulation - Standard/Provia, Vivid/Velvia, Soft Color/Astia, Classic Chrome, Pro Neg. Hi, Pro Neg. Standard, Monochrome, Monochrome + Ye Filter, Monochrome + R Filter, Monochrome + G Filter, Sepia
  • Highlight Tone - +2, +1, 0, -1, -2
  • Shadow Tone - +2, +1, 0, -1, -2
  • Color - +2, +1, 0, -1, -2
  • Sharpness - +2, +1, 0, -1, -2
  • Self-Timer - Off, 2 seconds, 10 seconds, Smile, Buddy, Group
  • AF Mode - Single Point, Zone, Wide/Tracking
  • Flash Mode - Auto, Forced Flash, Slow Synchro, Suppressed Flash, Rear-Curtain Synchro, and Commander
  • LCD Brightness - +5, +4, +3, +2, +1, 0, -1, -2, -3, -4, -5

Record - four way GIF.gif
Each of the individual four-way buttons is associated with a shortcut menu by default, including:

  • Right Button - White Balance (Auto, Custom, Color Temperature, Daylight, Shade, Fluorescent-1, Fluorescent-2, Fluorescent-3, Incandescent, Underwater)
  • Bottom Button - Continuous Shot (Still Image, Burst (High, Low), AE Bracket, ISO Bracket, Film Simulation Bracket, White Balance Bracket, Dynamic Range Bracket)
  • Left Button - Self-Timer (2 Sec, 10 Sec, Smile, Buddy, Group, Off)
  • Top Button - AF point

Record - EV GIF.gif
To change the camera's EV setting, spin the silver command dial on the top of the camera. The graph in the middle of the lower portion of the LCD screen will change to indicate the current EV setting.

Record - manual focus GIF.gif
Turn the toggle switch on the front of the camera to the M setting to enter manual focus mode. In manual focus mode, you'll see an MF icon in the lower left corner of the screen, as well as a graph that stretches across the bottom of the screen, representing the focal length. Twist the manual focus ring on the lens to change the focal length. The display will sharpen or blur as you twist the focus ring.

While in manual focus mode on the X-A3, you also can press downward on the black command dial to magnify the display on the screen, allowing you to more easily tell if particular objects are in focus. The MF logo will turn blue when you've pressed the black command dial.

Record - adv mode GIF.gif
The special effect shooting options are called Advanced Filter in the Fujifilm X-A3. You'll twist the mode dial to Adv to enter this shooting mode. Then press the Menu button to see your options, which are:

  • Advanced Filter - has multiple additional options, described below
  • Panorama
  • Multiple Exposure
Within the Advanced Filter setting are several more special effect modes, including:

  • Toy Camera
  • Miniature
  • Pop Color
  • High Key
  • Low Key
  • Dynamic Tone
  • Fish Eye
  • Soft Focus
  • Cross Screen
  • Partial Color - Red, Orange, Yellow, Green, Blue, Purple

Record - film sim GIF.gif
The Film Simulation mode is a great option found with many Fujifilm cameras, including the X-A3. It allows you to apply film related special effects to your photos, and the options are:

  • Standard/Provia
  • Vivid/Velvia
  • Soft/Astia
  • Classic Chrome
  • Pro Neg. Hi
  • Pro Neg. Standard
  • Monochrome
  • Monochrome + Ye Filter
  • Monochrome + R Filter
  • Monochrome + G Filter
  • Sepia

Record - auto GIF.gif
The X-A3's Auto mode is called Advanced SR Auto, marked by SR+ on the mode dial. When shooting in Auto mode, the camera controls all of the settings, other than EV. You'll see a circle with Auto inside on the screen when shooting in this mode.

Record - Fn 1.jpg
The X-A3 has an Fn button on the top panel of the camera. This button by default opens the ISO menu. You can change the setting associated with the Fn button through the Setup menu.

Record - movie GIF.gif
The dedicated movie recording button on the Fujifilm X-A3 is on the back panel on the right side, marked with a red dot. When you press this button, you'll start recording a movie. The top of the screen will have a red flashing dot and will indicate the amount of time remaining that you can record a movie. Just press the button a second time to stop the movie recording. You can record movies from any position on the mode dial.

Record - shoot menu.jpg
To open the Shooting Menu, press the Menu/OK button on the back of the X-A3. The options displayed in menu screens will change, depending on the shooting mode you're using.

You'll find five pages of menu options in the Shooting Menu, indicated by the red camera icon tabs numbered one through five on the left side of the screen. Use the four-way button to navigate among the tabs or the menu commands in the middle of the screen. Press OK or the right part of the four-way button to see additional options in a menu command. The Shooting Menu options in Program mode are:

  • Autofocus Setting - Focus Area, AF Mode (Single Point, Zone, Wide/Tracking), Release/Focus Priority (AF-S Priority Selection (Release, Focus), AF-C Priority Selection (Release, Focus)), AF+MF (On, Off), Face/Eye Detection Settings (Face On/Eye Off, Face On, Eye Auto, Face On/Right Eye Priority, Face On/Left Eye Priority, Face Off/Eye Off), Pre-AF (On, Off), AF Illuminator (On, Off)
  • ISO - L100, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, H12800, H25600, Auto 1, Auto 2, Auto 3 (all three Auto settings offer the same options, which are: Default Sensitivity (200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400), Max Sensitivity (400, 800, 1600, 3200, 6400), Min Shutter Speed (1/4, 1/8, 1/15, 1/30, 1/40, 1/60, 1/80, 1/100, 1/125, 1/160, 1/200, 1/250, 1/320, 1/400, 1/500))
  • Image Size - L (16:9, 3:2, 1:1), M (16:9, 3:2, 1:1), S (16:9, 3:2, 1:1)
  • Image Quality - Fine, Normal, RAW + Fine, RAW + Normal, RAW
  • Dynamic Range - Auto, 100%, 200%, 400%
  • Film Simulation - Standard/Provia, Vivid/Velvia, Soft/Astia, Classic Chrome, Pro Neg. Hi, Pro Neg. Standard, Monochrome, Monochrome + Ye Filter, Monochrome + R Filter, Monochrome + G Filter, Sepia
  • Film Simulation Bkt - Film 1, Film 2, Film 3
  • Self-Timer - 2 sec, 10 sec, Smile, Buddy (LV.1/Near, LV.2/Close Up. LV.3/Super Close), Group (1 person, 2 persons, 3 persons, 4 persons), Off
  • Interval Timer Shooting
  • White Balance - Auto, Custom, Color Temperature, Daylight, Shade, Fluorescent-1, Fluorescent-2, Fluorescent-3, Incandescent, Underwater
  • Color - +2, +1, 0, -1, -2
  • Sharpness - +2, +1, 0, -1, -2
  • Highlight Tone - +2, +1, 0, -1, -2
  • Shadow Tone - +2, +1, 0, -1, -2
  • Noise Reduction - +2, +1, 0, -1, -2
  • Long Exposure NR - On, Off
  • Custom Set - OK, Cancel
  • Touch Screen Mode - Touch Shooting, AF, Area, Off
  • Touch Zoom - On, Off
  • Mount Adaptor Setting - 21mm, 24mm, 28mm, 35mm, 50mm, 75mm
  • Shoot Without Lens - On, Off
  • MF Assist - Standard, Focus Peak Highlight (White Low, White High, Red Low, Red High, Blue Low, Blue High)
  • Photometry - Multi, Spot, Average
  • Interlock Spot AE & Focus Area - On, Off
  • Flash Set-Up - Flash Mode (Auto, Forced Flash, Slow Synchro, 2nd Curtain Sync, Commander, Suppressed Flash), Flash Compensation (+2, +1 2/3, +1 1/3, +1, +2/3, +1/3, 0, -1/3, -2/3, -1, -1 1/3, -1 2/3, -2), Red Eye Removal (On, Off)
  • Movie Set-Up - Movie Mode (1920x1080 (60 fps, 50 fps, 24 fps), 1280x720 (60 fps, 50 fps, 24 fps)), Movie ISO (Auto, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400), Mic Level Adjustment (1, 2, 3, 4)
  • IS Mode - Continuous+Motion, Continuous, Shooting+Motion, Shooting Only, Off
  • Digital Image Stabilizer - On, Off
  • Wireless Communication
  • Shutter Type - Mechanical Shutter, Electronic Shutter, Mechanical + Electronic

Record - setup menu.jpg
The options for the Setup menu are marked with blue wrench icon tabs along the left side of the screen. Three pages of Setup menu options are available with the A3, including:

  • Date/Time - MM/DD/YY, YY.MM.DD, DD.MM.YY
  • Time Difference - Home, Local
  • Language
  • Reset - Shooting Menu Reset, Setup Reset
  • Sound & Flash - On, Off
  • Sound Setup - Operation Volume (Off, 1, 2, 3), Shutter Volume (Off, 1, 2, 3), Shutter Sound (1, 2, 3), Playback Volume (between 0 and 10)
  • Screen Setup - Image Disp. (Off, 0.5 sec, 1.5 sec, Continuous), Preview Exp in Manual Mode (On, Off), LCD Brightness (+5, +4, +3, +2, +1, 0, -1, -2, -3, -4, -5), LCD Color (+5, +4, +3, +2, +1, 0, -1, -2, -3, -4, -5), Preview Pic. Effect (On, Off), Framing Guideline (Grid 9, Grid 24, HD Framing), Autorotate PB (On, Off), Focus Check (On, Off), Focus Scale Units (Meters, Feet), Display Custom Setting
  • Button Setting - Function Setting (Preview Depth of Field, ISO, Self-Timer, Image Size, Image Quality, Dynamic Range, Film Simulation, White Balance, Photometry, Touch Zoom, AE-Lock, AF-Lock, AE/AF Lock, Instant AF, AF Mode, Focus Area, Flash Mode, Flash Compensation, Movie Mode, Face/Eye Detection Setting, RAW, Wireless Communication, Shutter Type, Preview Exp in Manual Mode, Preview Pic Effect, None), Edit/Save Quick Menu
  • Focus Ring - Clockwise, Counter Clockwise
  • Touch Screen Setting - On, Off
  • Power Management - Auto Power Off (Off, 2 min, 5 min), High Performance (On, Off)
  • Sensor Cleaning - OK, When Switched On (Off, On), When Switched Off (On, Off)
  • Save Data Setup - Frame No. (Continuous, Renew), Save Org Image (On, Off), Edit File Name (sRGB, Adobe RGB), Date Stamp (Date & Time, Date, Off)
  • Color Space - sRGB, Adobe RGB
  • Custom Reset - OK, Cancel
  • Connection Setting - Wireless Settings (General Settings (Name, Reset Wireless Settings), Resize Image for Smartphone 3M (On, Off), PC Auto Save Settings (Delete Registered Destination PC, Details of Previous Connection)), PC Auto Save Setting (Simple Setup, Manual Setup), Geotagging Setup (Geotagging (On, Off), Location Info (On, Off)), Instax Printer Connection Setting
  • Format
