Playback Screens & Menus

Pressing the playback button on the back of the camera allows you to view all of the images that are saved on the camera's SD memory card. The info button on the back of the camera allows you to change the amount of information that is shown about the images, from nothing to a full list of shooting settings including a histogram.






Once in playback mode, the index button allows you to see thumbnails of the images that are saved on the memory card. There are several levels/amounts of thumbnails that can be shown, all of which make it easier to search through a full memory card.

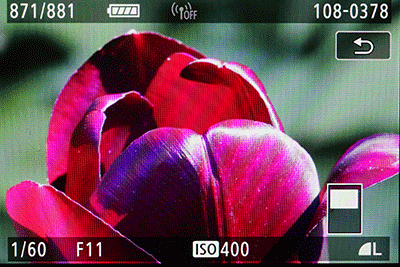

Next to the index button is the zoom button, allowing you to zoom in on any of your captured images. Once you have zoomed in, you can use the 8-way controller to scroll around the images. This is a great way to check the focus and fine detail of your images in the field or any time a computer or HDTV/Monitor is not available.




Playback Quick Menu:
  • Protect Images - Disable, Enable
  • Rotate - Change the orientation of an image 90° at a time
  • Rating - Give your images a rating of 1-5 stars
  • RAW to JPEG - Convert RAW images to JPEG in the camera
  • Creative Filters - Grainy B/W, Soft Focus, Fish Eye Effect, Art Bold, Water Painting, Toy Camera Effect, Miniature Effect
  • Resize - 11M, 5.9M, 2.5M, 0.3M
  • Cropping - Crop images in the camera
  • Highlight Alert - Disable, Enable
  • AF Point Display - Shows the focus points for the image
  • Image Jump w/main control dial - 1 image, 10 images, 100 images, Screen, Date, Folder, Movies, Stills
  • Send Images to Smartphone - Copy images to a smartphone if connected





Play menu options:
  • Protect - Protect/unprotect images
  • Rotate - Manually rotate portrait mode images
  • Erase images - Select and erase images or All images on card
  • Print Order - Set DPOF printing information
  • Photobook Set-up - Select images for a photobook
  • Creative Filters - Grainy B/W, Soft Focus, Fish-eye Effect, Art Bold, Water Painting, Toy Camera Effect, Miniature Effect
  • RAW Image Processing - Automatically converts RAW images to JPEG images on the camera
  • Cropping - Allows cropping (trimming) in the camera
  • Resize - 11M, 5.9M, 2.5M, 0.3M
  • Rating - Allows you to Rate your photos from 1 to 5 stars
  • Slide Show - Start and automated slide show playback
  • Image Jump w/main control dial - 1 image, 10 images, 100 images, Screen, Date, Folder, Movies, Stills
  • Highlight Alert - Disable, Enable
  • AF Point Display - Shows the focus points for the image
  • Playback Grid - Off, 3x3, 6x4, 3x3+diag
  • Histogram - Select Brightness or RGB histogram
  • Ctrl over HDMI - Enable or Disable





To assist in adding to your creativity, Canon has included several creative filters that can instantly change the look of your images: Grainy B/W, Soft Focus, Fish-eye Effect, Art Bold, Water Painting, Toy Camera Effect, Miniature Effect.

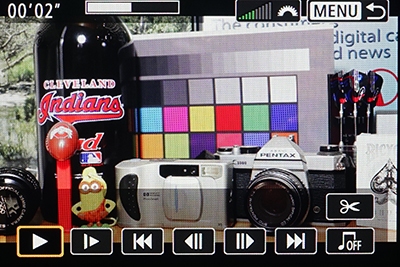

Your recorded movies along with the still images can be played back on either the camera's LCD screen or on any HDTV with an optional HDMI cable. The camera features basic DVR-like controls, allowing for frame-by-frame navigation of your videos. There are also some basic trimming/editing features that you can do in the camera.





Setup Menu Options:
  • Select Folder - Choose the folder to save your images
  • File numbering - Continuous, Auto reset, or Manual reset
  • Auto rotate - Enable auto rotation of portrait mode images in camera, on computer or both
  • Format - Format the CF card
  • Wireless Communication - Set and adjust Wireless and NFC settings
  • Auto power off - 1, 2, 4, 8, 15, 30 minutes or Off
  • LCD brightness - LCD back light intensity, 7 levels
  • LCD off/on Btn - Remains on, Shutter btn.
  • Date/Time/Zone - Set date and time
  • Language - Sets the menu language
  • Viewfinder Display - Show or hide the Electronic Level, Grid Display, Flicker Detection
  • GPS Device Settings - Settings available when GPS unit is attached
  • Video system - NTSC or PAL video output
  • Feature Guide - Enable, Disable
  • Touch Control - Standard, Sensitive, Disable
  • Battery Info. - Gives % remaining, Shutter count and recharging information
  • Sensor cleaning - Choose when the Sensor is cleaned: Auto, Clean Now, Clean Manually
  • INFO. Button Display Options - Choose any of the 3 screens to display: Camera Settings, Electronic Level, Shooting Functions
  • INFO. Button LV Display Options - Choose any of the 4 screens to display, all featuring different amounts of info (Choose Histogram Display)
  • Multi Function Lock - Main Dial, Quick Control Dial, Multi Controller, Touch Control
  • Custom Shooting Mode (C1, C2) - Register settings, Clear settings, Auto update set. (Disable, Enable)
  • Clear all camera settings - Clear all camera or Custom Function settings
  • Copyright information - Display copyright information for: Author's name, enter details, delete copyright information
  • Certification Logo Display - Shows camera certification logos
  • Firmware Ver. - Display camera firmware rev#, can be user-updated
