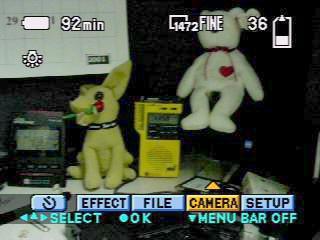

Typical record mode display with onscreen overlays for battery condition (both graphical and in minutes remaining), image size and quality, number of pictures remaining and a graphical representation of the space left on the Memory Stick, white balance is set to the manual preset for indoor lighting. The onscreen menu has been enabled across the bottom, see below for the menu options.

This is the screen display when set to Movie mode. Image size is 320x240 and we have the recording time set to the maximum which is 15 seconds per clip. The green STBY changes to a red REC after you press the shutter button.

Record mode menu options:

Self-timer - Enable the 10-second self-timer

EFFECT - Picture Effects: Solarize, B&W, Sepia, Negative art
Date/Time: Stamp date and time or just time on the photo

FILE - Format (Memory Stick or Floppy), File Number (Sequential numbering or Off), Clip motion (160x120 or 80x72 size), Image Size (1472x1104 interpolated, 1280x960, 1280 3:2, 1024x768 or 640x480), Record Mode (Normal, Email, Voice, Text, TIFF)

CAMERA - Digital Zoom (On/Off), Sharpness (+/-2), White Balance (Auto, Indoor, Outdoor, Hold), Flash Level (High, Normal, Low), Exposure (+/-2EV)

SETUP - Video Out (NTSC or PAL), Language (English/Japanese), Clock Set, Beep (On, Off, Shutter), LCD brightness adjustment

Play mode screen with data overlay enabled, icons for battery condition and time remaining, image size, picture# / total number of pictures, graphical representation of space left on the Memory Stick. Across the bottom is the folder name and image file number, the date and time of the exposure.

Using the telephoto lens control you can zoom-in to the image during playback in multiple steps up to 5x. Once the image is magnified you can use the 4-way selector to scroll around inside of the picture.

To quickly search through the stored images you can select the INDEX option from the popup menu. In this mode the screen displays nine thumbnail size images and you jump forward or backwards nine images at a time or select one to display full screen.

Play mode menu options:

INDEX - Display stored images in thumbnail format, 9 per page

DELETE - Erase image

FILE - Format (Memory Stick or Floppy), Slideshow playback mode, Print Mark - embed DPOF printing information, Protect or unprotect image from erasure

TOOL - Copy images to/from Memroy Stick or floppy diskette, Resize image (1472x1104, 1280x960, 1024x768, 640x480)

SETUP - Video Out (NTSC or PAL), Language (English/Japanese), Clock Set, Beep (On, Off, Shutter), LCD brightness adjustment
