Sony Mavica CD200 Review
By Movable Type Admin
Sony Mavica MVC-CD200
Record Screens & Menus
Before you can start taking pictures you need to initialize the new CD-R or CD-RW disc.
These are the screens displayed during initialization which takes less than a minute.

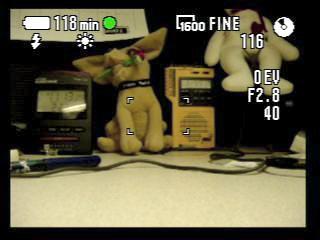

A typical record mode screen with the shutter release halfway down, the autofocus
is locked (green dot icon next to battery time), battery is near full with 118 minutes
of runtime left, the flash is set to forced on, white balance is set to Indoor, image
size is 1600 x 1200 and quality is Fine, approximately enough space on the disc
is left for 116 pictures, no exposure compensation (0EV),
the aperture is F2.8 with a shutter speed of 1/40 second.
Setting the Mode Dial to the "A"perture priority position lets you adjust the aperture value (wideangle: F2, 2.2, 2.5, 2.8, 3.2, 3.5, 4, 4.5, 5, 5.6, 6.3, 7.1, 8) and the camera's exposure system will match the appropriate shutter speed.
The aperture controls the depth of field (range of focus), a smaller number yields a
shallow depth of field and a higher number gives you a deeper depth of field. Shallow
depth of field is prefered in portraits to blur out the background and when you shoot an
outdoor scenic shot you would use F8 to put everything in focus.
Setting the Mode Dial to the "S"hutter speed priority positions lets you set a given
shutter speed (8 seconds to 1/800 sec in 39 steps) and the camera will match the
appropriate aperture value. You would use a high shutter speed to freeze rapid-moving
subjects or use a slower shutter speed to intentionally blur them.
Setting the Mode Dial to "M"anual allows you to adjust both the shutter speed and
the aperture value. You press in on the jog dial and move it to the shutter speed
or the aperture value and press it again and then change the setting. The "EV" readout
acts as your exposure meter and lets you know if the current settings will produce a
proper exposure or over- or under-exposure.
Still image record mode options:
White Balance - Automatic, Indoor, Outdoor or One-Push custom
ISO - Auto or fixed at 100, 200 or 400
Image Size - 1600x1200, 1600 (3:2), 1024x768, 640x480
Picture Quality - Fine or Standard
Record Mode - Normal, Email, Voice, Text (monochrome GIF), TIFF uncompressed
Flash Level - High, Normal or Low
Picture Effect - None, Negative Art, Sepia, B&W, Solarize
Sharpness - Default is 0 but may be +1, +2 or -1 or -2
The CD200 features the new MPEG MovieEX recording mode. You can capture full motion sequences with audio at 15 frames per second. There are three different recording modes available: 320x240 HQ is limited to 15 second clips but it plays back full screen on the LCD or TV screen. The normal 320x240 and 160x120 movies play back in a smaller screen area, see the next page for examples.
