Record Screens & Menus

By

Note: the WB750 kit does not include an AV cable, therefore we had to photograph the LCD for the screens below.


samsung_wb750_rec_auto.gifHere we take a look at Samsung's "Smart Auto" shooting mode, which is a fully automatic program that analyzes the scene being framed to determine the correct camera settings and scene modes settings to use. They propose that this setting helps you capture better photos in various shooting situations, and all you have to worry about is framing the picture and pressing the shutter release.  Above you can also see the different display options, which is controlled by pressing Up on the 4-way controller; Show basic info, Show all info, Hide all info.

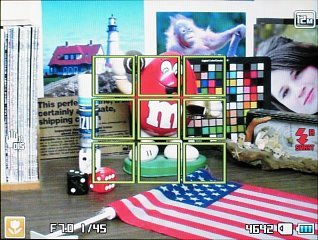

samsung_wb750_rec_ready.jpgWhen you half press the shutter release, several systems are put into action, including the AE (Auto Exposure), AF (AutoFocus), and Smart Auto's scene recognition. This is done almost instantly, and when the camera is ready you get a short audible note, along with seeing which of the nine AF points are active. At the bottom right, you'll notice instead of the Smart icon, we have a flower. This indicates that the camera has determined that the scene being framed is a Macro type scene.




samsung_wb750_rec_program.jpgFor those who like automatic exposure, however they like access to more advanced settings, The WB750 offers Program mode. In this mode, the camera still chooses the exposure settings (shutter and aperture), however you now have access to settings like ISO, White Balance, etc. Above we have Show All Information enabled, so you can see all of the icons on the screen; including a histogram. Pressing Up on the 4-way controls what you see on the screen.






samsung_wb750_rec_funtion_menu.jpgFn Menu (Program):
  • Photo Size - 12M, 11M (3:2), 10M, 9M (16:9), 5M, 3M, 2M (16:9) 1M
  • Quality - Super Fine, Fine, Normal
  • Exposure Compensation - ±2 in 1/3 increments
  • ISO - Auto, 80, 100, 200, 400, 800, 1600, 3200
  • White Balance - Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, Custom
  • Smart Filters - Normal, Miniature, Vignetting, Soft Focus, Old Film, Half Tone Dot, Sketch, Fish-eye, Classic, Retro, Oil Painting, Cartoon, Ink Painting, Cross Filter
  • Face Detection - Off, Normal, Self-Portrait, Smile Shot, Blink Detection, Smart Face Recognition
  • Focus Area - Center AF, Multi AF, Selection AF, Tracking AF
  • Metering - Multi, Spot, Center-Weighted
  • OIS - On or Off



samsung_wb750_rec_scene.jpgWhen you rotate the mode dial to the SCN position, you get access to 12 scene modes. A brief description is displayed along the bottom for each setting. The available options include: 3D Photo, Magic Frame, HDR, Beauty Shot, Night, Landscape, Text, Sunset, Dawn, Backlight, Beach & Snow,  and Zooming Shot.




samsung_wb750_rec_ASM.gifThe WB750 also offers some more advanced exposure modes for those who want even more control. You can choose from Aperture Priority, Shutter Speed Priority, or even full Manual. To changes values, you use the handy control wheel that's mounted around the 4-way controller.





The Menu button brings you to this menu of options. The five tabs on the left include; Shooting, Video, Sound, Display, and Settings:


Shooting:
  • Photo Size - 12M, 11M (3:2), 10M, 9M (16:9), 5M, 3M, 2M (16:9) 1M
  • Quality - Super Fine, Fine, Normal
  • Exposure Compensation - ±2 in 1/3 increments
  • ISO - Auto, 80, 100, 200, 400, 800, 1600, 3200
  • White Balance - Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, Custom
  • Smart Filters - Normal, Miniature, Vignetting, Soft Focus, Old Film, Half Tone Dot, Sketch, Fish-eye, Classic, Retro, Oil Painting, Cartoon, Ink Painting, Cross Filter
  • Face Detection - Off, Normal, Self-Portrait, Smile Shot, Blink Detection, Smart Face Recognition
  • Smart FR Edit - Off, My Star, Face List
  • Focus Area - Center AF, Multi AF, Selection AF, Tracking AF
  • Metering - Multi, Spot, Center-Weighted
  • Image Adjust - Contrast, Sharpness, Saturation
  • Bracket - White Balance BKT or Auto Exposure BKT
  • OIS - On or Off
  • Smart Zoom - On or Off


samsung_wb750_rec_sound_menu.jpgSound:
  • Volume - Off, Low, Medium, High
  • Start Sound - On or Off
  • Shutter Sound - On or Off
  • Beep Sound - On or Off
  • AF Sound - On or Off


samsung_wb750_rec_display_menu.jpgDisplay:
  • Function Description - On or Off
  • Grid Line - Off, 3x3, 2x2, Cross, Diagonal
  • Date/Time Display - On or Off
  • Display Brightness - Auto, Dark, Normal, Bright
  • Quick View - Off, 0.5 sec, 1 sec, 3 sec
  • Power Save - On or Off


samsung_wb750_rec_setup_menu.jpgSettings:
  • Language - Select the language for the camera menus
  • Time Zone - Choose your time zone from the world map
  • Date & Time - Set the date and time
  • Date Type - Choose the date format
  • File no. - Reset or Series
  • Imprint - Add the date and time to an image
  • Auto Power Off - Amount of time before the camera shuts off due to non-use
  • AF Lamp - On or Off
  • Format - Erase and Format the memory card
  • Reset - Puts the camera back to the factory defaults
  • Anynet+ (HDMI-CEC) - On or Off
  • HDMI Size - 1080i, 720p, 576p, 480p
  • Video Out - NTSC or PAL
  • USB - Compuer, Printer, Select Mode
  • PC Software - On or Off




samsung_wb750_rec_movie.jpgThe WB750 offers several Movie mode options, with resolution settings of 1920x1080, 1280x720, and 640x480. Sound is recorded in Stereo, thanks to two microphones mounted on the top of the camera. The frame rate is 30fps for all modes, however pressing the burst mode button on the back of the camera gives you access to High speed video options or 250 and 440 fpgs; resolution is reduced at these settings. All movie clips are saved in MPEG-4 (H.264) format, with a maximum clip length of 20 minutes. The Optical zoom is available during video, giving you greater versatility with your framing options in movie mode when compared to most cameras that do not allow you to use the zoom while recording.

Other options that are available in movie mode are OIS (Optical Image Stabilization), Exposure Compensation, Smart Filter, Metering, Smart Face Detection, and Voice.
