Record Screens & Menus

By

Note: please excuse the quality of these images, the ST600 camera kit does not include an AV cable, therefore we had to photograph the LCD.

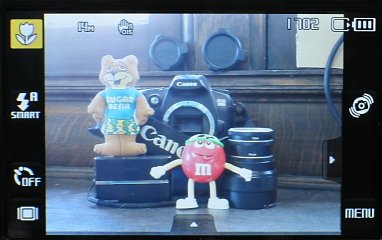

samsung_ST600_smart_auto.jpgThis is the ST600 in the Smart Auto shooting mode. In this mode the camera will select most of the settings and choose the best scene mode for your shot. The only settings that are able to be changed are the flash mode, self-timer, and you can choose the amount of information to be displayed on the LCD. Samsung's Smart Auto mode gives an average user great results for various types of shooting, without having to deal with complicated settings.




Half pressing the shutter release displays the AF mark(s) being used. When in focus the marks will be green and the camera is in focus and ready to snap the image, if not in focus they will turn red. The ST600 displays the Scene setting chosen (Macro), the aperture (F14.1) selected, and also shown is a variety of other icons that display the photos settings: the 14M image quality, OIS is on, the flash is set to Smart Auto, top right you can see the battery level indicator, and that we have room on our microSDHC card for 1702 photos.



Since there is no external mode dial, changing the ST600's shooting mode is accessed on the touchscreen LCD. The top left icon shows what mode the camera is in, and tapping this icon will show the screen capture above. Here you are able to select the appropriate mode for your shooting needs.



Choosing the Scene mode on the above virtual mode dial will display the above screen capture. This option allows you to select from a variety of different scene selections that will best fit the image to be photographed. The Scenes include: Beauty Shot, Frame Guide, Night, Portrait, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Fireworks, and Beach & Snow.



Now we show the ST600 in program mode. In program mode the camera automatically selects both shutter speed and aperture values. However, in this mode the user has access to more advanced camera settings like ISO, White balance, Metering, Focus Area, etc. Using the small shortcut tab at the bottom of the screen will show the shortcut menu. This allows easy access to menu settings that you may want to change quickly.


samsung_ST600_shortcut_menu.jpgThis is the shortcut menu described above. The available settings depend on what shooting mode you are in.

Program Mode Shortcut Menu:
  • Exposure Compensation
  • White Balance settings
  • ISO settings
  • Focus Area
  • Face Detection Settings
  • Image Size
  • Image Quality
  • Automatic Contrast Balance
  • Metering
  • Drive Mode
  • Photo Style Selector
  • Smart Filter
  • Image Adjust
  • Optical Image Stabilization
  • Voice Memo





Camera Menu settings in Program mode:

  • Exposure Compensation - ±2EV in 1/3EV steps
  • White Balance - Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, Custom Set
  • ISO - Auto, 80, 100, 200, 400, 800, 1600, 3200
  • Focus Area - Center AF, Multi AF, One Touch Shooting, Smart Touch AF
  • Face Detection - Off, Normal, Smile Shot, Blink Detection, Smart Face Recognition, Face List, My Star
  • Photo Size - 14M, 12M, 12M (3:2), 10M (16:9), 8M, 5M, 3M, 2M (16:9) 1M
  • Quality -SuperFine, Fine, Normal
  • ACB - Automatically compensates for differences in brightness; On or Off
  • Metering - Multi, Spot, Center-weighted
  • Drive - Single, Continuous, Motion Capture, AE Bracketing
  • Photo Style Selector - Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB
  • Smart Filter - Normal, Miniature, Vignetting, Fish-eye 1-2, Sketch, Defog
  • Image Adjust - Toggle Contrast, Sharpness and Saturation
  • OIS - Optical Image Stabilization; On or Off
  • Voice - Off, Voice memo, Voice recording
.


samsung_ST600_rec_motion_menu.jpgThe ST600 also has the unique "Motion Detection" menu, which is activated by pressing and holding the Icon to the right (shown above). This allows you to shake or move the camera in various directions to select certain exposure options: Movie, Smart Auto, and Program. Unfortunately, you can not customize the available settings.




Here is the ST600 recording a movie. Movies can be shot in 1280x720 HQ, 1280x720 SQ, 640x480, or 320x240 motion video, with audio, at 30 or 15fps. A recorded video is saved as a H.264 MPEG-4.AVC (.MP4) file, and has a maximum of 20 minutes recording. You are able to use the optical zoom during recording, however during playback you may hear the lens moving. Samsung now has a feature called Zoom Mute to eliminate the noise of the optical zoom while recording.




Movie mode menu options:

  • Exposure Compensation - ±2EV in 1/3EV steps
  • White Balance - Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, Custom Set
  • Movie Size - 1280x720 HQ, 1280x720, 640x480, 320x240
  • Frame Rate - 30fps or 15fps
  • Metering - Multi, Spot, Center-weighted
  • Photo Style Selector - Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom
  • Smart Filter - Normal, Miniature, Vignetting, Fish-eye 1, Sketch, Defog
  • OIS - On or Off
  • Voice (sound) - On or Off, Zoom mute



samsung_ST600_sound_menu.jpgSound Menu Options:

  • Volume - Off, Low, Medium, High
  • Children Sound - Off, 1, 2, 3
  • Beep Sound - On or Off
  • Shutter Sound - Off, 1, 2, 3
  • Start Sound - Off, 1, 2, 3
  • AF Sound - On or Off


samsung_ST600_display_menu.jpgDisplay Menu Options:

  • Function Description - On or Off
  • Start Image - Off, Logo, User Image
  • Grid Line - 2x2, 3x3, +, X
  • Display Brightness - Auto, Dark, Normal, Bright
  • Quick View - Off, 0.5, 1, 3 seconds
  • Power Save - On or Off
  • Auto Lock - Off, 10 or 30 seconds, 1 min.


Shooting settings menu options:

  • Format - Format the memory card/internal memory
  • Reset - Return all settings to factory defaults
  • Language - Choose the language used in menus
  • Time Zone - Choose your time zone
  • Date & Time - Set the internal clock/calendar
  • Date Type - Choose how date is displayed.
  • File No. - Series or Reset
  • Auto Rotate - On or Off
  • Imprint - Off, Date or Date & Time
  • Auto Power Off - Off, 1, 3, 5 or 10 minutes
  • AF Lamp - Turn the AF assist lamp On of Off
  • Anynet+ (HDMI-CEC) - On or Off
  • HDMI Size - 1080i, 720p, 480p
  • Video Out - NTSC or PAL format
  • USB mode - Computer, Printer, Select Mode
  • PC Software - On or Off
