Record Screens & Menus

By

Note: please excuse the quality of these images, the ST100 camera kit does not include an AV cable, therefore we had to photograph the LCD.

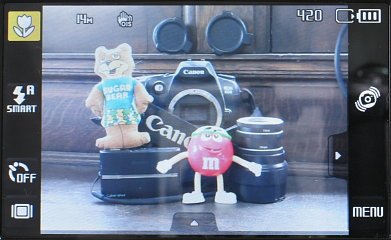

samsung_ST100_rec_smart_auto.jpgHere is the ST100 in its Smart shooting mode, which is fully automatic. This is a great shooting mode for all users that just want to grab the camera and start snapping without having to choose any settings. In this mode you are only able to change the flash mode, enable the self-timer, and choose the information display. Samsung uses its intelligent exposure program that automatically chooses all of your settings for you, including choosing the best scene mode for the shot being framed (like Macro shown above). This will give the average user the best results for various types of shooting, without having to deal with complicated settings.




Half pressing the shutter release will show the above capture, displaying the AF mark(s) being used. If in focus these marks will be green and the camera is in focus and ready to snap the image, and if not in focus they will turn red. The camera will display the Scene setting chosen (Macro) and the aperture (F3.9) selected. Also shown is a variety of other icons that display the photos settings. These include the 14M quality, OIS is on, the flash is set to Smart Auto, top right you can see the battery level indicator, and that we have room on our microSD card for 420 photos.



Changing the ST100's shooting mode is accessed on the touchscreen LCD. The top left icon shows what mode the camera is in, and tapping this icon will show the screen capture above. Here you are able to select the best mode available for your shooting needs.



Choosing the Scene mode on the above virtual dial will display the above screen capture. This option allows you to select from a variety of different scene selections that will best fit the image to be photographed. The Scenes include: Beauty Shot, Frame Guide, Night, Portrait, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Fireworks, and Beach & Snow.



With the ST100 in program mode, the camera automatically selects both shutter speed and aperture values. However, this will allow access to more advanced camera settings like ISO, White balance, Metering, Focus Area, etc. Using the small shortcut tab at the bottom of the screen will show the shortcut menu. This allows quick access to the menu settings that you may want to change.


samsung_ST100_rec_program_shortcut_menu.jpgThis is the shortcut menu described above. The available settings depend on what shooting mode you are in.

Program Mode Shortcut Menu:
  • Exposure Compensation
  • White Balance settings
  • ISO settings
  • Focus Area
  • Face Detection Settings
  • Image Size
  • Image Quality
  • Automatic Contrast Balance
  • Metering
  • Drive Mode
  • Photo Style Selector
  • Smart Filter
  • Image Adjust
  • Optical Image Stabilization
  • Voice Memo





Camera Menu settings in Program mode:

  • Exposure Compensation - ±2EV in 1/3EV steps
  • White Balance - Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, Custom Set
  • ISO - Auto, 80, 100, 200, 400, 800, 1600, 3200
  • Focus Area - Center AF, Multi AF, One Touch Shooting, Smart Touch AF
  • Face Detection - Off, Normal, Smile Shot, Blink Detection, Smart Face Recognition, Face List, My Star
  • Photo Size - 14M, 12M, 12M (3:2), 10M (16:9), 8M, 5M, 3M, 2M (16:9) 1M
  • Quality -SuperFine, Fine, Normal
  • ACB - Automatically compensates for differences in brightness; On or Off
  • Metering - Multi, Spot, Center-weighted
  • Drive - Single, Continuous, Motion Capture, AE Bracketing
  • Photo Style Selector - Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB
  • Smart Filter - Normal, Miniature, Vignetting, Fish-eye 1-2, Sketch, Defog
  • Image Adjust - Toggle Contrast, Sharpness and Saturation
  • OIS - Optical Image Stabilization; On or Off
  • Voice - Off, Voice memo, Voice recording
.


samsung_ST100_rec_motion_menu.jpgThe ST100 also has a unique "Motion Detection" menu, which is activated by pressing and holding the Icon to the right (shown above). This allows you to shake or move the camera in various directions to select certain exposure options: Movie, Smart Auto, and Program. Unfortunately, you can not customize the available settings.




The ST100 can record movies in 1280x720 HQ, 1280x720 SQ, 640x480, or 320x240 motion video with audio at 30 or 15fps. A recorded video is saved as a H.264 MPEG-4.AVC (.MP4) file, and has a maximum of 20 minutes recording. You are able to use the optical zoom during recording, however it moves very slowly to ensure you don't pick up a lot of noise from the zoom motor in your video.




Movie mode menu options:

  • Exposure Compensation - ±2EV in 1/3EV steps
  • White Balance - Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, Custom Set
  • Movie Size - 1280x720 HQ, 1280x720, 640x480, 320x240 or 320x240 web
  • Frame Rate - 30fps or 15fps
  • Metering - Multi, Spot, Center-weighted
  • Photo Style Selector - Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom
  • Smart Filter - Normal, Miniature, Vignetting, Fish-eye 1, Sketch, Defog
  • OIS - On or Off
  • Voice (sound) - On or Off



samsung_ST100_sound_options_menu.jpgSound Menu Options:

  • Volume - Off, Low, Medium, High
  • Children Sound - Off, 1, 2, 3
  • Beep Sound - On or Off
  • Shutter Sound - Off, 1, 2, 3
  • Start Sound - Off, 1, 2, 3
  • AF Sound - On or Off


samsung_ST100_display_options_menu.jpgDisplay Menu Options:

  • Function Description - On or Off
  • Start Image - Off, Logo, User Image
  • Grid Line - 2x2, 3x3, +, X
  • Display Brightness - Auto, Dark, Normal, Bright
  • Quick View - Off, 0.5, 1, 3 seconds
  • Power Save - On or Off
  • Auto Lock - Off, 10 or 30 seconds, 1 min.


Shooting settings menu options:

  • Format - Format the memory card/internal memory
  • Reset - Return all settings to factory defaults
  • Language - Choose the language used in menus
  • Time Zone - Choose your time zone
  • Date & Time - Set the internal clock/calendar
  • Date Type - Choose how date is displayed.
  • File No. - Series or Reset
  • Auto Rotate - On or Off
  • Imprint - Off, Date or Date & Time
  • Auto Power Off - Off, 1, 3, 5 or 10 minutes
  • AF Lamp - Turn the AF assist lamp On of Off
  • Anynet+ (HDMI-CEC) - On or Off
  • HDMI Size - 1080i, 720p, 480p
  • Video Out - NTSC or PAL format
  • USB mode - Computer, Printer, Select Mode
  • PC Software - On or Off
