Record Screens & Menus

By

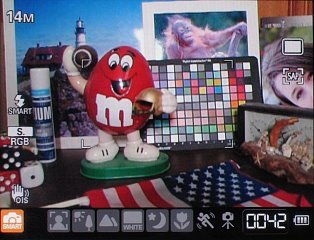

In SmartAuto mode the camera will select a shooting mode, select shutter speed, aperture values and determine the need for flash, leaving only zooming and framing to the photographer for hassle-free shooting. It also analyzes the scene being framed to determine the best Scene mode settings to use.

samsung_nx10_rec_ready.jpgWhen the shutter release is half pressed, the camera will prefocus and if the NX10 is ready to shoot, the AF target/targets will turn green and the camera will beep. If the camera fails to focus, the targets will turn red and the camera will not beep. You can also see that the flash is charged and ready to fire (red lighting bolt).

samsung_nx10_rec_program.jpgHere is an example of the camera in Program mode. Here you are able to set more advanced functions that are not available in SmartAuto.

Here you can see manual mode, which allows you to have complete control over the exposure process, and access to all possible settings. You control both the aperture and shutter speed by using the control dial and the AV button. At the bottom, you can see an exposure scale which will help you dial in the exposure.


In Aperture Priority mode, you select the aperture value, and the camera selects the corresponding shutter speed for the shot being framed.

Shutter Priority mode is the exact opposite of Aperture Priority, you not select the shutter speed and the camera selects the aperture.



samsung_nx10_rec_movie_anim.gifHere we see what the LCD displays when shooting a movie clip. The NX10 records in 1280X720 (HD), 640x480 and 320x240. The NX10 uses H.264 compression and movies are saved with a .MP4 file extension. The maximum clip length is limited by 4GB or 25 minutes, which ever comes first. You also have the ability to manually control the Aperture, which allows for more creative video recording. The autofocus system switches to continuous mode when using movie mode, which helps keep subjects in focus when using a zoom lens.


samsung_nx10_rec_menu_anim.gifImage Recording Menu:

  • Photo Size - 14M, 10M, 6M, 2M Wide Aspect Ratio: 12M, 8M, 5M, 2M
  • Quality - Super Fine, Fine, Normal, RAW, RAW+SuperFine, RAW+Fine, RAW+Normal
  • ISO - Auto, 100 - 3200
  • White Balance - Select the WB setting that best suits the scene, or choose Auto
  • Picture Wizard - Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom 1-3
  • Color Space - sRGB, Adobe RGB
  • AF Mode - Single, Continuous, Manual Focus
  • AF Area - Selection, Multi, Face Detection, Self-Portrait
  • AF Priority - On, Off
  • Drive - Single, Continuous, Burst, Timer, AE BKT, WB BKT, P Wiz BKT
  • Metering - Spot, Center weighted, Multi
  • Flash - Fill-in, Fill-in Red Eye, 1st Curtain, 2nd Curtain
  • BKT Set - AE BKT, WB BKT, P Wiz BKT
  • Smart Range - On, Off
  • OIS - Mode 1, Mode 2


Rec Movie Menu:
  • Movie AE Mode -Program, Aperture Priority
  • Movie Size - 1280, 640, 320
  • Quality - Normal, High Quality
  • White balance - Select the WB setting that best suits the scene, or choose Auto
  • Picture Wizard - Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom 1-3
  • AF Mode - Single, Continuous, Manual Focus
  • AF Area - Selection, Multi, Face Detection, Self-Portrait
  • Drive - Off, Timer
  • Metering - Spot, Center weighted, Multi
  • Fader - Off, In, Out, In-OUt
  • Wind Cut - Off, On
  • Voice - On, Off
  • OIS - Mode 1, Mode 2


The following two menus are for customizing settings to your liking.

Still mode
Movie mode




Here you can see the shortcuts when using the 4-way controller: AF modes, WB selections, ISO settings, Metering modes.



samsung_nx10_rec_fn_anim.gifThe FN menu allows you to quickly access additional functions that can be changed. It is important to note that the choices are dependent on the exposure mode being used.


Setup menu options:

  • Format - Format the memory card
  • Reset - Resets the camera settings to factory default
  • File Name - Standard, Date
  • File Number - Series, Reset
  • Folder Type - Standard, Date
  • Language - Select the language shown in the display
  • Quickview - Off, 1sec, 3sec, 5sec, Hold
  • Display Adjust - Display Brightness, Auto Brightness, Display Color
  • Display Save - Off, 0.5min, 1min, 3min, 5min, 10min
  • Power Save - 0.5min, 1min, 3min, 5min, 10min, 50min
  • Date & Time - Set the date and time for the camera
  • Sound - System Volume, AF Sound, Button Sound
  • Sensor Cleaning - Sensor Cleaning, Start-Up Action
  • Video Out - NTSC, PAL
  • Anynet+ (HDMI-CEC) - On, Off
  • HDMI Size - Auto, 1080i, 720p, 480p, 576p
  • Firmware Update - Body Firmware, Lens Firmware
