Pentax PHOTO Browser is software for viewing and managing images taken on your digital
camera then transferred to your computer (Windows or Macintosh OS X).
When you select a folder containing compatible (files with extensions [.PEF (RAW)], [.TIF
(TIFF)], and [.JPG (JPEG)] are supported) saved images, Pentax
PHOTO Browser automatically creates thumbnails.You then
select a thumbnail to view an image. The screen captures presented here are shown operating in Windows XP.
Pentax PHOTO Browser also does the following tasks:
- Save image files under a new name, change file names, copy, cut,
delete and paste.
- Create new folder, change folder name, copy, cut, delete and paste.
- Save Image Data List
- Check Image Data
- View RAW image data easily.
Also, Pentax PHOTO Laboratory provides RAW image editing and Pentax REMOTE Assistant allows remote camera control.
Both of these applications can be invoked from within the Pentax PHOTO Browser.
The Pentax PHOTO Browser window layout:
- Tree view:
Internal data on your computer appears as a folder tree and you select the folder containing saved image files here.
Also, the tree view handles operations such as creating new folders,
erasing folders or moving/copying folders. (Applies only to Windows)
- Thumbnail pane:
Images in the folder selected appear here as thumbnails.
The size of thumbnails can be selected from a choice of four sizes. When a thumbnail
image is selected in the thumbnail pane, the image appears in the preview
pane and the image data appears in the image data pane.
- Preview pane:
An image selected in the thumbnail pane appears in this view.
- Image data pane:
The image information for the image selected in the thumbnail pane
Double-clicking on a thumbnail image opens the edit window, where tools are available to crop, Auto Fix and rotate
the image, or to invoke Pentax PHOTO Laboratory.
Pentax Photo Laboratory V. 3 processes RAW image data produced by the K100D Super,
enabling them to appear on commercially available image viewing and
editing software. Enhancements over version 2 include print bracketing, noise reduction,
lens aberration correction, crop/resize, rotate/shift, a more advanced tone panel and
enlarged preview panel for selecting a grey point for white balance correction.
When you click the [View] button, a drop down menu allows you to select the
RAW processing tools to use. When you select each item (White Balance,
Tone, Noise Reduction, Lens aberration correction,
Other settings [Sensitivity, Contrast, Saturation, Sharpness], individual setting panels are
Setting the Sensitivity / Contrast / Saturation / Sharpness
Adjusts the sensitivity of development processing.
+ : The image becomes brighter.
- : The image becomes darker.
Adjusts the contrast between light and shadow.
+ : Increases contrast between light and shadow.
+ : Decreases contrast between light and shadow.
Adjusts the strength of the colors after RAW data development.
+ : The colors become stronger.
- : The colors become weaker.
Adjusts the sharpness of the edges.
+ : Image contour is enhanced.
- : Image contour is softened.
White Balance settings panel with the preset selections shown. You can select the
Camera Setting, use a preset, select a gray point from the image or manually set the
color temperature. The
changes made will be shown real time in the preview window.
The relationship between the input level and output level is set
using a graph (Up to 16 points.).
If the graph is left clicked, the line on the graph moves to that
spot and the point can be set.
The point can be released by right clicking (Windows only).
Histogram (Brightness) displays the light distribution when combining RGB.
Histogram (R) Displays the light distribution for R (Red).
Reset Deletes the tone curve settings, and returns to a straight line.
Histogram (G) Displays the light distribution for G (Green).
Histogram (B) Displays the light distribution for B (Blue).
The Lens aberration panel provides three tools: Marginal lumination compensation, Distortion Correction and
Lateral Chromatic Aberration Correction.
The Marginal lumination correction reduces light falloff at the corners. Sliders are provided for lens angle of view
and brightness correction.
Distortion Correction resolves lens aberration that photographs straight lines as curved lines.
The Correction balance slider adjusts the distortion correction level between the center and margins of the image. (Slide to the right to widen the range.)
The Compensation slider sets the compensation level.
Lateral Chromatic Aberration corrects differences in the image magnification and image size due to different color wavelengths at the image margins.
The Red compensation slider adjusts the magnification of red light and the Blue compensation slider adjusts the magnification of blue light.
The Noise Reduction panel offers tools for reducing image noise.
Random noise reduction reduces random noise (especially electrical noise visible in dark areas).
Spurious color signal reduction settings are provided to reduce moire.

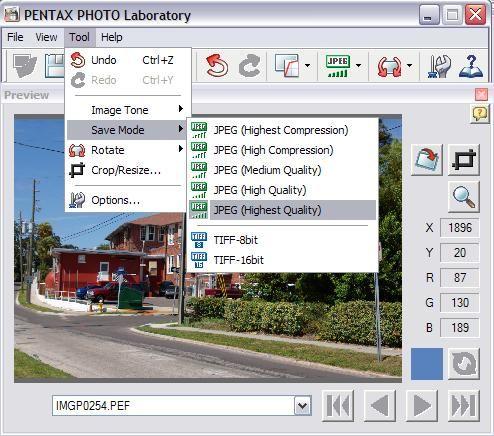

The Tool drop down menu lets you change Image Tone, Rotate and Crop/Resize the image.
save formats are JPEG (5 levels), TIFF 8-bit, and TIFF 16-bit.
Pentax REMOTE Assistant
This software has an additional function that controls the camera from a
computer. To use Pentax REMOTE Assistant, you will need to purchase
and install the Pentax REMOTE Assistant separately.
Pentax PHOTO Laboratory and Pentax REMOTE Assistant can also
be run as standalone applications.
