The eye level viewfinder is equipped with an EP-5 eyecup and shows 95% of the field
of view and includes dioptric compensation (-3 / +1). This 10mm high-eyepoint
viewfinder allows for easy composition, even when wearing eyeglasses.

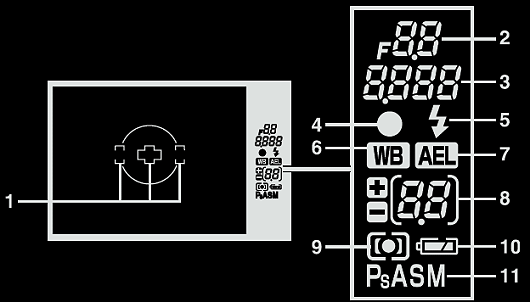

Inside the viewfinder is a fixed, Mat Screen focusing screen with
AF/Metering marks. Viewfinder information includes: AF frame, AF confirmation mark,
Exposure mode, Exposure compensation value, AE lock, Metering mode, Shutter speed,
Aperture value, White balance, Flash and Battery status.
The optional ME-1 eyecup with magnifying lenses can be attached to the E-410 and E-510
in place of the bundled standard eyecup. The ME-1 magnifies the original view field
in the finder by 1.2x (approximately 20%), making it easier to check focus and framing.
The ME-1 is about $39.99 US.
The big knob on the right is the Mode Dial with positions for Manual, Shutter-speed priority, Aperture
priority, Program AE, Auto, Portrait, Landscape, Macro, Sports, Night + Portrait and Scene Mode.
You know of course that scene modes are presets you can use to make the best photos in common shooting situations.
There are 18 Scene Modes available: (Portrait, Landscape, Landscape + Portrait, Night Scene, Night Scene +
Portrait, Fireworks, Sunset, Macro, Sports, High-Key, Low-Key, Documents, Beach & Snow, Candle, Children,
Nature Macro, Panorama, DIS Shake Reduction).
The Power on/off switch is located around the Mode Dial. The unmarked dial below is the Control Dial which has various functions depending
on the menu you are using. Next to the Mode Dial is a blue LED labeled "SSWF" that blinks each time the camera
is powered up - this indicates the SuperSonic Wave Filter is operating. In between the Mode Dial and shutter release
is a +/- Exposure Compensation button.
On the top left you'll find the Flash button that pops up the flash and selects flash modes. Next to the Flash button is a multi-function control that
is used to set Sequential shooting, the Self Timer and Remote control options. You can also see the flash Hot Shoe for using external flash units.
The Default (left) and Detailed control panel display
The Evolt lacks a data LCD, instead it offers this Super Control Panel displayed on
the 2.5-inch HyperCrystal color LCD. Most of the buttons on the back (see below) are
used to quickly change important camera settings in conjunction with the Control Dial.
You can also press the OK button and then use the arrow keys to select just about
any item shown on the LCD and change it with the dial.
Control Panel info displayed: Flash mode, Flash compensation value indication, Metering
mode, Focus mode, Record mode, Aperture value, Shutter speed, Battery check, Number of
storable still pictures, Image quality adjustment, ISO, Color space, Mono tone, Hi/Lo
Key, White balance, Remote control, Self-timer, Exposure level indicator, Exposure
compensation indicator, AF frame, Number of storable sequential pictures, Exposure
compensation value indication, Auto bracket, Noise reduction, Single-frame
shooting/Sequential shooting, Color saturation compensation value indication, Sharpness
compensation indication value, AE bracket, WB bracket.
The EVOLT E-410 has a bright, high-resolution, 2.5" "HyperCrysta" LCD screen (230,000 pixels). As you change setting on the Mode Dial
the LCD display will change to show the options within that mode. Many photographers report the HyperCrystal LCD appears brighter outdoors
in sunlight than other LCDs. A major advantage of the E-410 is the Live Preview available on the LCD. Live Preview allows you to use the
LCD to focus instead of the viewfinder. This might not seem like a big deal but it is not a common feature on dSLRs.
The largest control on the back is a set of multifunction buttons arranged in a circle called the Arrow Pad. In the center of this array is an
OK button. Around the
OK button are 4 arrow buttons, called the Arrow Pad, used to navigate menus and previews. Each of these arrows also has an additional function when pressed
alone. Starting directly above the OK button is the White Balance compensation selector, then to the right is the Auto Focus mode,
below is the ISO selection control and finally to the left is the Metering mode selector. Olympus calls these "Direct Buttons" and pressing
any of them brings up a menu up on the LCD.
There are a lot of other Direct Buttons on the back of the E-410. Next to the Eyecup is an Exposure Lock button. Next in line is the Live Preview button. Using Live Preview
you can use the LCD as a viewfinder and preview the exposure and white balance settings. Once again, pressing any one of these Direct Buttons calls up the associated menu on
the LCD panel.
Directly below the Control Dial you'll find an Auto Focus frame button you can use to fine tune the AF setting. The Function button is like a
bookmark you set from the main menu to call up your choice of white balance, Test Picture or depth of field preview.
Topmost to the right of the LCD is the Playback button. Pressing it brings up your last shot and you use those arrow keys I just told you about
to navigate through your shots. Remember the Control Dial, the unmarked knob on the top of the camera? The Control Dial in Playback mode
allows you to zoom in to your stored photos on the LCD.
Below the Playback button is the Delete button.
Next we find the Menu button which
calls up the camera's basic setup menus.
And finally we have the info button which makes the LCD display various information about
the camera including a histogram.
