Olympus D-565 Zoom Review

By Movable Type Admin


Click for our main menu

Olympus Camedia D-565 Zoom



Features and Controls



Olympus Camedia D-565 Zoom

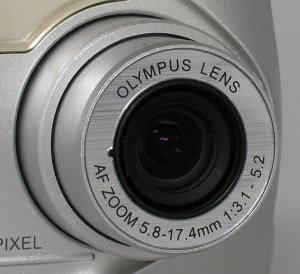

Olympus 3x zoom lens (5.8 - 17.4mm), F3.1/5.2 (equivalent to 35-105mm on a 35mm camera). Stepless 4x digital zoom when combined with the optical zoom gives a 12x seamless zoom.

TTL system auto focus (contrast detection system) with a focusing range: 20" ~ infinity (0.5m- infinity) in Normal mode and 8 to 20" (0.2m-0.5m) in Macro mode. Depressing the Macro button (the up arrow on the 4-way navigation control) toggles between macro mode and standard AF.

The lens retracts inside the camera when powered down and the sliding cover protects it, no lens cap required.



Olympus Camedia D-565 Zoom
The D-565Z has a small but bright eyelevel optical viewfinder. There is no diopter adjustment. The green LED indicates a focus lock and the amber LED tells you the status of the flash.



Olympus Camedia D-565 Zoom

Built-in multimode intelligent speedlight; Auto (automatic flash activation in low light and backlight), red-eye reduction, fill-in (forced activation), slow shutter sync (first curtain), slow shutter sync w/redeye reduction and off (no flash).

Working flash range: Wideangle 8" - 7' (.2m - 2.1m) @ ISO 100, Tele: 8" - 6.7' (.2 - 2.0m) @ISO 100 with an six second full recharge rate with new batteries.



Olympus Camedia D-565 Zoom

On the back is a 1.8-inch color TFT LCD monitor with 85,000 pixels and the majority of the camera's controls.


Olympus Camedia D-565 Zoom

The MONITOR button controls the color LCD, enables the QuickView feature in record mode and turns the camera on in playback mode if the lens barrier is closed. The 4-way switch lets you navigate menus (see next page) and select playback images, enable macro/normal focus modes, enable self-timer, and select the desired flash mode. In the center is the MENU button which also serves as the OK (accept selection) button.


Olympus Camedia D-565 Zoom

On top you'll find the shutter release and the zoom lens control which also functions as the zoom and index controls in playback mode.



Olympus Camedia D-565 Zoom Olympus Camedia D-565 Zoom

The I/O ports include: USB (v1.1) data port, Auto Connect enabled for plug-n-play downloads with most modern operating systems. The Video Out port has selectable NTSC or PAL format. And a DC IN jack for an optional AC adapter or an external battery pack.





Olympus Camedia D-565 Zoom

The D-565Z stores its images on xD-Picture Cards. On the back side of the handgrip is the card slot which accepts any size card. Olympus includes an 16MB card with panorama function.



Olympus Camedia D-565 Zoom

The D-565Z is powered by two AA type batteries or one CR-3V lithium non-rechargeable battery. Alkaline type batteries can be used but high- capacity NiMH rechargeables are preferable; they are more environmentally friendly, reusable up to 500 times and save you money.

The CR-V3 type batteries offer the longest life of all battery types but the one-use batteries are expensive. Thankfully we now have an alternative, check out our list of CR-V3 rechargeable batteries.
