Playback Features
In playback the display mode or amount of information displayed is controlled by
pressing the multi-selector up or down. Press it right or left to select the
next or previous image. The roles of the up/down and left/right controls
can be reversed using Custom Setting f3. Histogram, RGB Histogram, Shooting Data
and Focus Area displays are a enabled by the Display Mode options in the
Playback Menu.
Histogram shows the distribution of tones in the image. The horizontal axis corresponds
to pixel brightness, with dark tones to the left and bright tones to the right. The
vertical axis shows the number of pixels of each brightness in the image.
The RGB Histogram. The horizontal axis corresponds to pixel brightness, with dark tones to the left and
bright tones to the right. The vertical axis shows the number of pixels of each brightness in the image.
Four graphs are displayed, for Red, Green and Blue channels as well as the light histogram. You can also
see the highlights display at the top left.

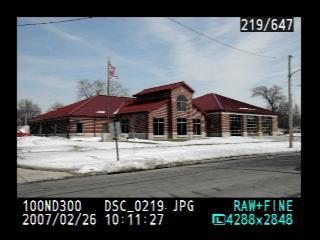

Shooting data #1 with metering/shutter speed/aperture, exposure mode/ISO, exposure comp., focal length, lens used, AF mode/VR mode, and flash mode.
Shooting data #2 with white balance, color space, picture control, quick adjust, sharpening, contrast, brightness, saturation, and hue.
Shooting data #2 with noise reduction mode, active d-lighting mode, retouch used (if any), and comment.
Pressing the OK button while viewing an image will bring up the Retouch Menu. Here you can see the D-
lighting option.
Thumbnail index mode can display 4 or 9 images per page
The full screen image can be enlarged up to 27x (depending on
image size) in multiple steps, at any step you can use the
multi-selector to scroll around inside the magnified image.
Playback Menu
Delete - Delete images from CF card
Playback folder - Select the active playback image folder
Hide image - Hide or reveal selected images
Display mode - Select the playback display features: Shooting data,
Histogram, Highlights, RGB Histogram, Focus point
Image review - Display image immediately after capture
After delete - Display next or previous image after deleting an
Rotate tall - Automatically rotate portrait oriented images for display
Slide show - Start an automated slide show of the images in the
current image folder
Print set - Enter DPOF printing information
Images can be individually deleted in full screen or thumbnail mode
Retouch Menu
D-Lighting - brightens shadows, ideal for dark or back-lit photos
Red-Eye Correction - Remove red-eye in your flash portraits (saves as a corrected copy, does not overwrite original)
Trim - Crop and image and save as a new file
Monochrome - Choose Black&White, Sepia or Cyanotype (blue and white monochrome)
Filter Effects - Choose from Sky light or Warm filter
Color Balance - Use the multi selector to create a copy of an image with modified color balance.
Image Overlay - Combine two existing RAW photos to create a single picture that is saved separately. The new image is saved at the current image quality and size settings.
