Playback Screens & Menus

By

Please excuse the quality if our screen images, Kodak does not include an A/V cable.

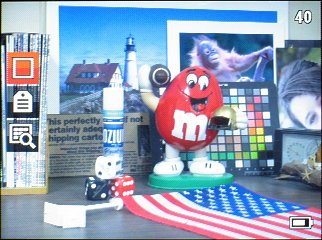

This is the M590's Playback screen where you can view and edit your images. Pressing the Info button will show the three icons on the left, the battery life icon, and at the top you see the total number of files captured. The three options you have here are to Select the photo, Edit the photo tags, or View all, which enters the camera into index mode. If you press the Info button again all of the information on the screen will be hidden.


Here is the Index mode described above which allows you to search through your images either 15 or 28 thumbnails at a time. This is activated by the method described in the above paragraph, or by pressing the Wide zoom control. You may also use the shortcuts at the top of the screen to select and tag your images for easier access. These include: date, people, favorites, and keywords. Once you've landed on a photo or video you want to see full screen, you simply press the Telephoto zoom control to bring it up.




Using your zoom lever to the telephoto end allows you to zoom in on any area of your image up to 8x in several steps. Once you have zoomed in on an image, you can use the 4-way pad to scroll around your images.



Review Menu:

  • Select All - Select all of the images/videos saved on the memory
  • Tag People - Assign names to recognized faces
  • Keyword Tag - Select a Keyword tag to organize your images
  • View Thumbnails - Enters index mode
  • Print - Tag an image for printing as well as choosing the number of images to print
  • Favorite - Mark an image as a favorite
  • Protect - Stop images/videos from being deleted
  • Multimedia Slide Show - Access settings and run a slideshow
  • Properties - View detailed information about your images



Edit Menu:

  • Perfect Touch Tech - Use a split screen to adjust your images. Save as new or as original image
  • Crop - Allows you to adjust the image, removing unwanted objects from the edges of images and fixing the images compositions
  • Copy - Copy images to and from the internal memory card and internal memory
  • Add Date Stamp - Adds a date to the image when printed



This is the M590's crop feature that allows you to adjust the box shown above to change the composition of an image as well as remove unwanted objects from the edges. Pressing the center of your 4-way pad will save your cropped image as a new file.




Movie playback allows you to view your movies full screen either on the camera's LCD. There are options to play, pause, stop, fast-forward, rewind, and adjust the volumel. The fast-forward and rewind options have two increments, either 2x or 4x. Your 4-way pad controls all of your options while viewing.




Movie Edit Menu:

  • Make Picture - Make a 4x6 image from any single frame in a video
  • Trim - Delete an unwanted portion of a video
  • Action Print - Make a sequenced image from the frames of a video
  • Copy - Copy back and Forth between the internal memory and SD card


Setup Menu:

  • Date & Time - Adjust the Date & Time for the camera
  • LCD Brightness - High Power, Power Save, Auto
  • Share Button Settings - Choose which sharing sites to show in the share button menu
  • Red Eye Reduction - Preflash, Digital Correction
  • Image Stabilizer - On, Off
  • Orientation Sensor - On, On Transfer, Off
  • Camera Sounds - Change the volume level and camera sounds
  • Video Out - NTSC, PAL
  • Computer Connect - Kodak Software, Other Appliction
  • Image Storage - Auto, Internal Memory
  • Language - Choose the camera menu language
  • Reset Camera - Reset the camera to the factory defaults
  • Format - Deletes everything the internal memory or memory card
  • Kodak Camera Software - Links the camera to Kodak's Share Button software
  • About - View the camera's firmware version
