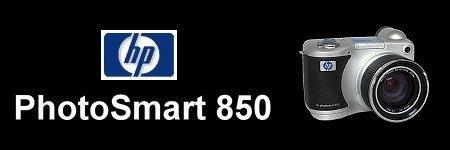

HP PhotoSmart 850 Review
By Movable Type Admin
Features and Controls
The auto focus range is from 19.7 in. to infinity (wide), 35.5 in. to infinity (tele),
and from 3.9 in. - 27.6 in. (macro mode, wide angle.) There is a low-light focus assist
lamp that illuminates when needed.
The lens extends when powered up and when powered down it's retracted back into
the body. HP provides a snap-on type of lens cap.
Here's a quick example of the focal range of an 8x zoom lens
The eyelevel finder is a color micro-LCD display like those found on modern camcorders. This is an EVF (electronic viewfinder) and gives you a SLR-like view through the lens. It also allows for display of camera information over the live view image as well as image review. The outer eyecup turns to adjust the diopter and those two holes below it are the eye-start sensors. To save battery power the EVF is only powered up when your face is near the camera.
The LightViewQVGA Microdisplay Engine from Displaytech Inc., Longmont, Colo., USA, is the electronic viewfinder (EVF)
in the HP Photosmart 850 digital camera. The EVF functions as an information center,
showing a full array of shooting information and monitoring effects of image manipulation
and control. Displaytech's microdisplay delivers a visual resolution equivalent to
approximately 230,000 pixels, nearly two times more than most direct-view LCDs found in
other digital still cameras.
The built-in manual popup flash has settings for Auto, On, Off, Red eye, Night, Night with
red eye. Flash recycle time is about 3 seconds. Maximum range is 3.5m at ISO 100.
Controls on the back: Across the top is the Flash mode button and Macro focus button.
The Display button to the right of the 2-inch color
LCD, turns the display on or off. In the middle is the Playback mode button and below
that is the SHARE button to select printing and
emailing options. The OK button calls up the onscreen menu and accepts selections.
The 4-way selector is for navigating menus and selecting pictures for playback.
Controls on the top: the Mode Dial around the Shutter Release, it has positions
for Movie record, Self-timer and Still image record and functions as the On/Off switch too.
To the left is the popup flash release lever and below the mode dial is the speaker.
The PhotoSmart 850 comes with a 16MB Secure Digital memory card and is compatible with SD cards up to 256MB. It is not compatible with MultiMedia type cards.
**BETTER 13 - 4MP images, 35 - 1MP images
*GOOD 26 - 4MP images, 71 - 1MP images.
The I/O ports are located on the side and include:
USB 1.1 port for downloading data to computer. It can also be used to directly connect the camera to most HP printers.
Audio-Video out for connection to a TV set
The DC IN port on the bottom is for the optional AC power adapter.
On the bottom of the camera is an 8-pin connector for the HP 8881 Digital Dock that carries audio, video, USB and power.
The PhotoSmart 850 is powered by four standard AA type batteries and comes with
a set of alkaline batteries. We recommend using
high-capacity NiMH rechargeables which are more
environmentally friendly and pack 3-5x the power.
The optional HP 8881 Digital Dock (street price $79.99, as of 08/2002) includes four NiMH
batteries and charges them whenever the camera is docked. The buttons on the front
let you quickly download images to the computer, output to a HP
photo printer or display a slide show on your TV set.
The HP Digital Dock has I/O connectors for power in from the AC adapter, video out to television, USB out to printer and USB I/O to computer(cables included). It has a neat little sliding cover over the USB ports which keeps you from having both connected at the same time.
