Canon Powershot SD800 IS Review

By Movable Type Admin


Click for our main menu

Canon Powershot SD800




Record Modes & Menus



Canon Powershot SD800 IS

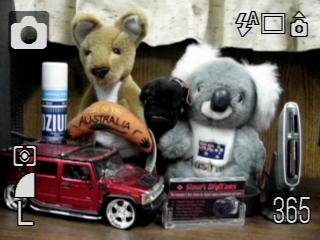

The screen display in the Automatic record mode. Icons across the top and left indicate that metering is Evaluative, single frame drive, auto flash, and Auto exposure mode. The image size is Large, quality is Fine and there's space left on the SD card to take 365 more pictures.



Canon Powershot SD800 IS

When the color LCD is turned on and you half-press the shutter you will see which of the nine AF points (green rectangles) were used for the focus lock.



Canon Powershot SD800 IS

Manual exposure mode is like Auto in that the camera selects both the shutter speed and aperture for a correct exposure but you now have access to a multitude of Function and Menu options.



Canon Powershot SD800 IS

Manual mode Function options:

    Camera Mode - Choose the desired exposure mode: Manual, Digital macro, Color Accent, Color Swap, Stitch assist
    Exposure Compensation - Override the metering +/- 2.0EV in 1/3 steps
    White Balance - Auto, day Light, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom one-push WB set
    My Colors - Off, Vivid, Neutral, Sepia, B&W, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, or Custom Color
    Metering - Evaluative, Center Weighted Avg., Spot
    Image Compression - Superfine, Fine, Normal
    Image Resolution - 3648x2736, 2816x2112, 2272x1704, 1600x1200, 640x480, Postcard(1600x1200), and Widescreen (3648x2048)




Canon Powershot SD800 IS

Manual mode MENU options:

    AiAF - On or Off
    AiAF - Face Detect, On, Off
    Digital Zoom - On or Off
    Slow Synchro - On/Off
    Red-Eye - On/Off
    Self-timer - Custom set
    AF Assist Beam - On or Off
    Review Time - Off, Hold or 2 - 10 secs
    Auto Category - On/Off
    Display Overlay - Enable or disable Grid lines, 3:2 Guide, Off or Both
    Date Stamp - Off, date, or date&time (only works in 3:2 Postcard mode)
    Long Shutter - Allows selection of a long shutter speed




Canon Powershot SD800 IS

To set long shutter speeds, first set Long Shutter to ON in the main menu. In the Function menu, highlight exposure compensation then press the Menu button. The shutter speed is displayed at the bottom of the LCD; select a value from 1 to 15 seconds using the left and right buttons of the 4-way controller. Depress the FUNC./SET button to return to shooting mode. The LCD viewfinder's live image provides a preview of the exposure; adjust the shutter speed for the exposure you want. Noise Reduction is applied for exposures of 1.3 seconds or longer.



Canon Powershot SD800 IS

The camera has a very respectable macro focusing mode with coverage from 2.0 in.- 1.6 ft./5-50cm (WIDE), 1-1.6 ft./30-50cm (TELE).



Canon Powershot SD800 IS

Scene modes are selected via the Function Menu when the mode dial is set to the SCN position. You can choose from 10 different modes like Portrait shown above. These are pre-programmed to give you the best possible pictures for a wide variety of different shooting situations. In all Scene modes, Exposure compensation, Image compression and Image size settings are available via the Function menu.



Canon Powershot SD800 IS

The Stitch Assist Panorama mode is available from the Function menu with the Mode dial in Manual. It aids you via on-screen prompts to achieve the proper overlap of sequential photos for later "stitching" with the PhotoStitch program. You can capture up to 26 images in either left-to-right or right-to-left orientation. After the first picture is taken the white balance and exposure is locked until you exit the StitchAssist mode.   The use of a tripod and a bubble level is recommended. Since the SD800 IS will not output video in this mode, this screen capture was taken from the PowerShot S400 review.



Canon Powershot SD800 IS

You can record movie clips with audio at a variety of resolutions and frame rates. Standard movies can be recorded at resolutions of 640x480 or 320x240 with frame rates of 30 or 15 fps. Compact movies are recorded at a resolution of 160x120 with a frame rate of 15 fps. These clips are captured in Motion JPEG format and saved as AVI files.

Both the video and audio portion of movies can be replayed on the camera thanks to the built-in speaker. Full audio-video playback is also possible when connected to a TV monitor or a compatible PC after downloading.



Canon Powershot SD800 IS

Movie mode recording options:

    Mode - Standard, High Resolution (1024x768), Compact, Color Accent or Color Swap
    White Balance - Auto, Sunny, Cloudy, Incandescent, Fluorescent, Fluorescent H, Custom one-push WB set
    My Colors - Off, Vivid, Neutral, Sepia, B&W, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, or Custom Color
    Frame Rate: 30 or 15 fps
    Movie Size: 640x480 or 320x240





Continue on to
Playback Modes & Menus
