Canon Powershot A60 Review
By Movable Type Admin
Features & Controls
The A60 features a 3X (35-105mm in the 35mm format) f/2.8-4.8 all-glass aspherical zoom lens. When the camera is powered down the lens is retracted inside of the body and a built in shutter closes to completely protect the lens.
Attaching auxilliary Canon lenses couldn't be easier. Press the button and remove the dress ring, attach the optional LA-DC52C Conversion Lens Adapter and then the Canon WC-DC52 0.7x Wide Converter lens, TC-DC52 2.4x Tele-converter lens or the 250D Close-up Lens.
The LA-DC52C adapter also allows the use of any 52mm filters or lenses.
The built in flash offers Auto, On, Off, Red-Eye Reduction On or Auto. Flash range is
1.5 to 14 ft. in wide angle, 1.5 to 8.2 ft. in telephoto or 10 in. to 1.5 ft. in macro

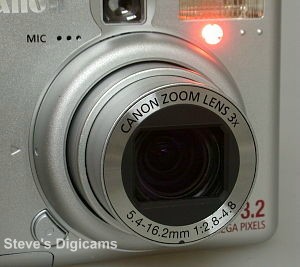

mode. The AF-assist lamp also serves as a red-eye reduction lamp (see first picture
You can frame your pictures with the color LCD or to save precious battery power you
can use the optical eyelevel finder. This is a coupled viewfinder with approx. 82%
coverage. It has no dioptric adjustment. Next to the finder are two LEDs
that indicate the flash and focus status.
On the top you'll find the On/Off button, the shutter release with the zoom lens
control mounted around it. In playback mode the zoom lever functions as the index
and magnified image control. The Mode Dial with positions for: Manual, Aperture
priority AE, Shutter-speed priority AE, Program AE, Portrait, Night, Fast, Slow,
Stitch-Assist and Movie. See the next page for more information
about the exposure modes.
In the upper right is the Play / Record switch. The 4-way controller lets you navigate menus and select images during playback. In record mode you press "Up" to change metering mode, press "Right" to change flash modes, press "Down" to change the drive mode and press "Left" to change the focus mode. Buttons under the LCD (left to right); the SET button accepts menu selections, the MENU button calls up and dismisses the menus, the DISPlay button turns the color LCD on/off and controls the amount of data displayed on it, the FUNCtion button gives you access to many settings (Exposure compensation, white balance, ISO, Color effects, image quality and image size.), it also functions as the image delete button in playback mode.
See the next page for more information about the Record mode menus.
The I/O ports: AV Out handles monaural audio and video to connect to a TV set with the supplied cable. The DIGITAL port connects USB to the computer for image download and camera control with the supplied RemoteCapture software. It also allows for Direct printing to Canon Card Photo Printer CP-100 and letter-size S820D, S830D, and S530D photo printers. The DC IN jack is for the optional AC power adapter or an external battery pack.
Also tucked away in here is the CR 1220 memory battery that maintains the clock,
calendar and camera settings when the main batteries are removed.
The Powershot A60 is equipped with a Type I CompactFlash card slot and comes with
an 16MB CF card. It can handle any capacity CF Type I card.
The A60 is powered by four standard AA-type batteries, alkaline, NiMH or lithium cells. Canon claims approx. 250 shots/approx. 800 shots (LCD monitor ON), approx. 350 shots/approx. 1000 shots (LCD monitor OFF). Playback Time approx. 280 min/approx 280 min. The first time is calculated using alkaline cells, the second time is using 1700mAh (or better) NiMH rechargeable cells.
Canon offers a battery and charger kit CBK100 that includes four NiMH batteries. The
A60 can also be powered by the AC Adapter Kit ACK600 for unlimited runtime from your
For all-weather protection and use underwater to depths up to 130 feet, the WP-DC700 Waterproof Case is just the ticket. Works with Powershot A60 and A60 models.
