Canon EOS 1D Mark II SLR Review
By Movable Type Admin
Features & Controls (cont.)

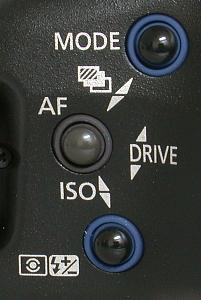

The controls on top left hand side are identical to those found on the EOS-1v film camera.
Pressing the two blue ringed buttons and rotating the Main Dial sets the drive mode.
As the labels indicate, using a combination of buttons and the
Main Dial lets you set the ISO, AF mode, metering mode, flash exposure compensation
and the AE Bracketing modes.
Controls on the top right hand side: Shutter release, FEL (flash exposure lock), the
Main Dial, +/- Exposure compensation and the LCD illumination (light bulb) button.
The large monochrome data LCD displays all major camera settings such as shutter speed
and aperture values, exposure mode, ISO speed, focus mode, metering mode, drive
mode, personal function, flash exposure compensation, exposure bracketing, exposure
compensation, selftimer and battery
status. The top and back LCD displays are illuminated by a highly visible blue
Along the back edge are the Assist/White balance
correction button, AE Lock/Reduce button and the AF point selection/Magnify button.
These buttons are duplicated on the camera's
vertical grip shutter release.
The vertical grip, shown from the side. The On/Off switch
disables the shutter release when not in use. You turn the
camera up into portrait orientation and grip it along the front bottom edge. There
is a shutter release, main command dial and FEL button on the front, the AEL, Assist
and AF point selection buttons are on the back.
Images are stored on CompactFlash Type I or II flash cards, IBM Microdrives or Secure Digital (SD) cards. The Mark II supports both FAT(16) and FAT32 file systems so any capacity device may be used up to the theoretical limit of 2048GB. Image data can be simultaneously recorded on both types of media.
As expected, the Mark II was designed for professional users and professional speed flash media. It would be a shame to put anything less than the fastest CF or SD cards in this camera. The new Sandisk Extreme and Ultra II cards are a perfect match for the fastest dSLR on the planet -- with a minimum write speed of 9 megabytes per second (MB/sec.) and a minimum read speed of 10MB/sec. you won't be waiting for these cards to do their job!
Approximate Storage on 256MB Card
On the top is the flash PC sync connector
Remote port for the Remote Switch RS-80N3, Timer Remote Controller TC-80N3 or the Wireless Controller LC-4.
Video Out (NTSC or PAL format)
The Mark II is powered by the same NP-E3 12v 1650mAh NiMH battery pack as the EOS-1D and comes with the NC-E2 rapid charger, a 100-240V AC unit that can charge two NP-E3 packs (one at a time.) A fully depleted pack is recharged in two hours. Canon also supplies the DCK-E1 DC Coupler for powering the camera directly from a 100-240V AC power source.
Also located in the battery compartment is a CR2025 lithium button cell for the
camera's clock/calendar and memory functions. Its service life is about ten years.
Thanks to the fast, new Digic II processor, the Mark II's battery life has been more than
doubled from the EOS-1D with the same battery. Canon claims the NP-E3 has enough power for
approx. 1200 shots (at 20°C/68°F) and approx. 800 (at 0°C/32°F). The
actual number of shots will vary depending on your shooting conditions and use of the
To insure that the battery doesn't accidentally come out on its own you have to twist
the latch and then press the battery release button. The area where the battery and
the camera mate is also weather-proofed.
This wrist strap was included with the EOS-1D, but now it's an optional accessory for the Mark II. No serious user will call this an "optional" accessory, this is -not- a light weight camera when outfitted with an "L" lens. Shame on Canon for -not- including it as part of the basic camera outfit. (Shown here on the 1D as we didn't have one for the 1D Mark II)
